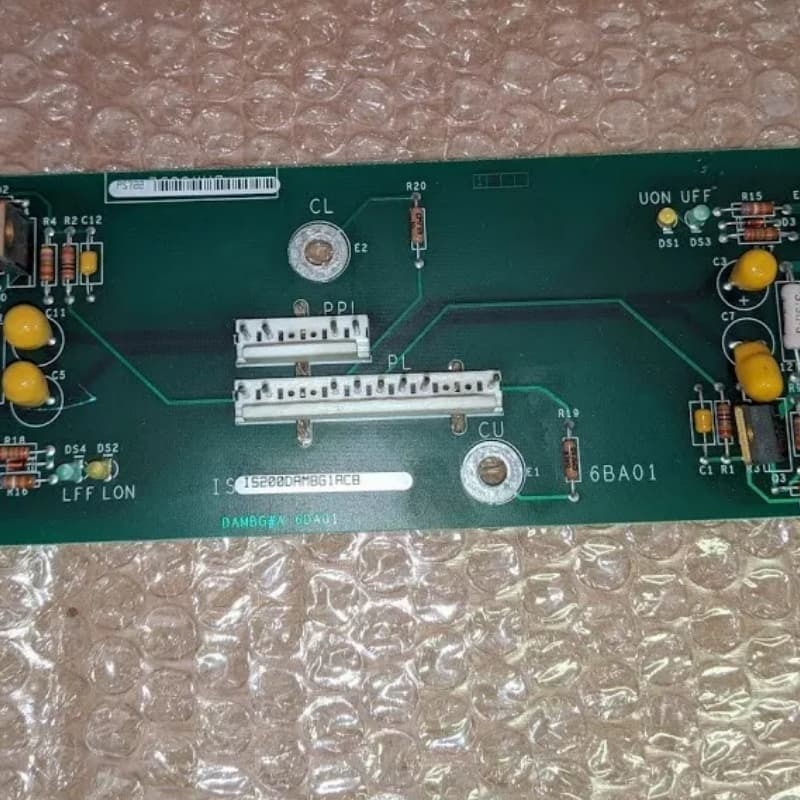

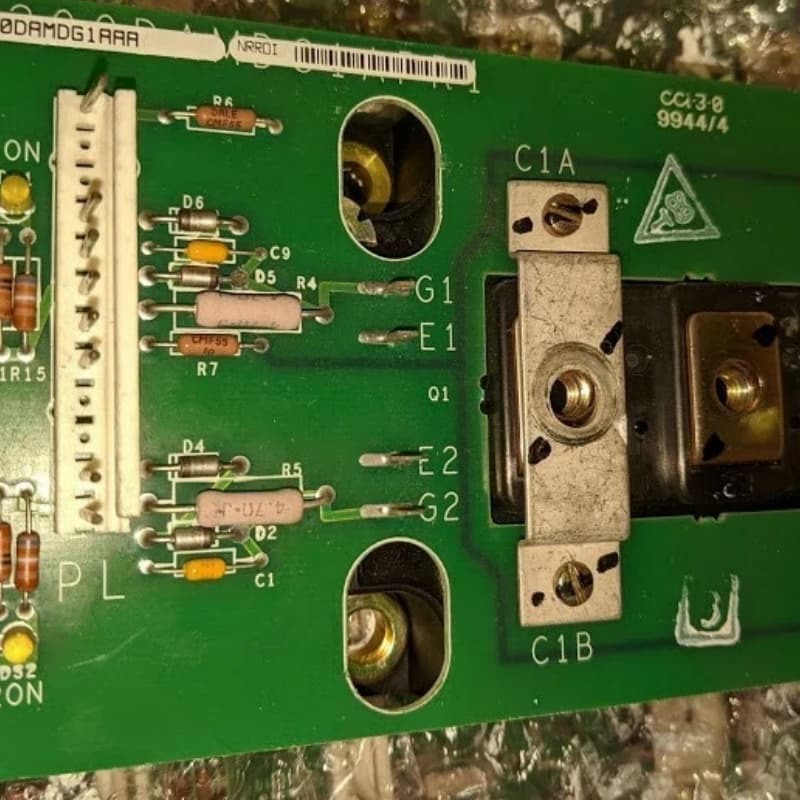

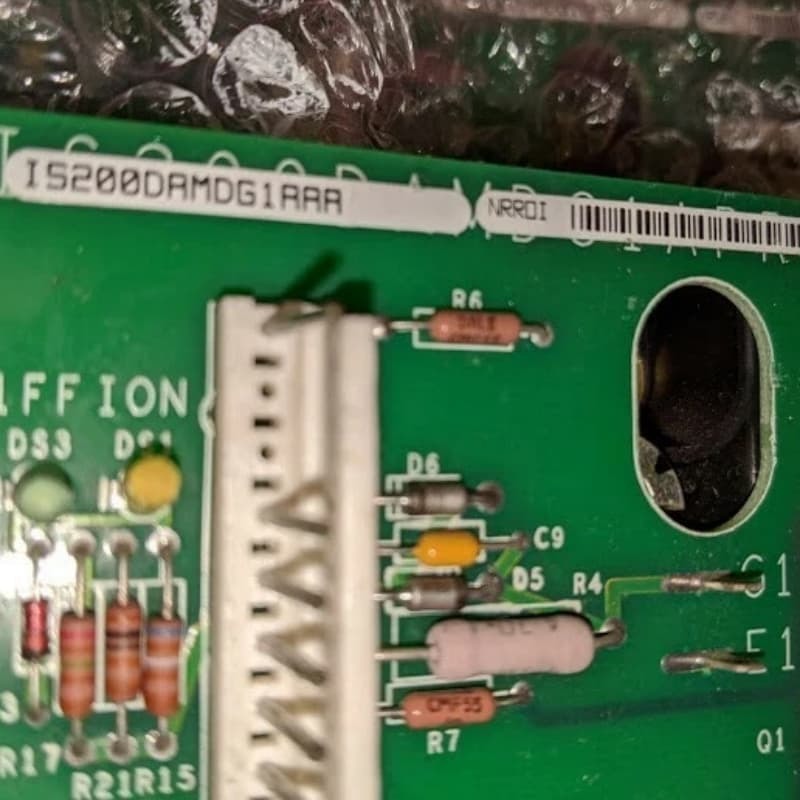

GE Mark VI IS200DAMDG1A Gate Driver Board

Product Description:

IS200DAMDG1A is a drive board designed and manufactured by General Electric (GE), which belongs to the Drive Control Innovation Series and is used in the GE Speedtronic drive turbine control system. Its core function is to control the switching of power semiconductor devices, through the provision of the necessary voltage and current signals, to achieve efficient and reliable on and off operation, and at the same time, isolate the low-voltage control circuit from the high-voltage power circuit, to protect the sensitive control electronic components from high-voltage and transient interference.

Features:

1. Electrical isolation: electrical isolation is realized between the low-voltage control circuit and high-voltage power circuit, preventing high-voltage and transient signals from damaging the control components and enhancing system safety.

2. Voltage and Current Capability: Designed to provide the voltage and current levels required to drive power semiconductor devices, it can handle high-voltage signals and output sufficient current to ensure fast switching of power devices.

3. Protection Mechanisms: Integrates a variety of protection functions, including over-voltage protection, under-voltage lockout, short-circuit protection, over-current protection, and thermal shutdown to protect the power device and itself from damage.

4. Adjustable parameters: support the adjustment of gate voltage and timing parameters, according to the specific application requirements to optimize the switching characteristics of the power device, to enhance flexibility.

5. IC Protection: Equipped with electrostatic discharge (ESD) protection, transient voltage suppression and electromagnetic interference (EMI) filtering, etc., to resist external interference and ensure the stability of internal circuits.

6. Communication interface: Some advanced models are equipped with communication interfaces such as SPI or I2C, which support communication with control systems or microcontrollers to realize remote control, monitoring and integration of complex control architectures.

Technical Parameters:

Applications:

Some of the application occasions and scenarios for the GE Turbine Control System include:

• Power Generation
• Petrochemical Processes
• Industrial Processes

Don't wait, order your GE Turbine Control Instrument today and experience the benefits of high-quality control for your turbine system.
