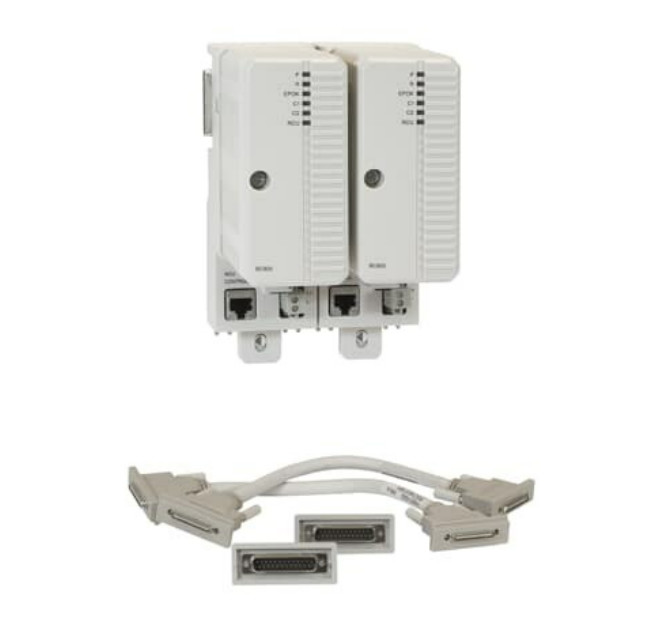

BC820K02 3BSE071500R1 ABB CEX-Bus Length of 127.5 mm
| Place of Origin | Sweden |
|---|---|
| Brand Name | ABB |
| Certification | CQ,COO |
| Model Number | BC820K02 |
| Document | BC820K02 3BSE071500R1.pdf |
| Minimum Order Quantity | 1pc |
| Price | $1000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 9999pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | BC820K02 | Product ID | 3BSE071500R1 |
|---|---|---|---|
| Catalog Description | CEX-Bus | Product Net Depth / Length | 127.5 Mm |
| Product Net Height | 185 Mm | Product Net Width | 59 Mm |
| Product Net Weight | 1.4 Kg | Quality | 100% Brand New |
| Warranty | 1 Year | ||
| Highlight | BC820K02 ABB CEX-Bus,ABB CEX-Bus,3BSE071500R1 ABB CEX-Bus |
||
Product Description
BC820K02 3BSE071500R1 ABB CEX-Bus
Product Details:
| Brand name | ABB |
| Model | BC820K02 |
| Product ID |
3BSE071500R1
|
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
Description:
The CEX-Bus unit BC820 is used for extending the onboard communication ports with communication interface units.
It is also possible to use redundant communication interfaces on the CEX-Bus.
The BC820 CEX-Bus Interconnection Unit offers a way to section the CEX-Bus into two independent segments up to 200 meters apart.
This improves availability in systems with redundant communication interfaces.
The BC820 can be used with PM858, PM862, PM866 (PR.F or later, which corresponds to PR:H or later for PM866K01), and PM866A.
The BC820 is powered from the processor unit via the CEX-Bus and can also support the CEX-Bus with redundant power through its external connector for power supply.
BC820 transmits the RCULink and extends the CEX-Bus and RCU-Link cable length up to 200 m.
The number of CEX-Bus interfaces is limited to 6 with each BC820.
You need to provide the following cables at a suitable length (not included in the BC820K02 kit):
RCU Control Link: Modular Jack, RJ45, shielded twisted pair crossover cable with all four pairs crossed:
EIA/TIA-568 standard crossover T568A to T568B. Length: max 200m.
RCU Data Link: The optical interconnection is compatible with LC Duplex optical connector interface conforming to ANSI TIA/EIA60-10 (FOCIS 10A).
The type of optical cable is 50/125μm OM3 fiber.
Length: max 200m.
Features and benefits
• Supports redundant communication interface units.
• Supports on-line replacement of the CPU.
• External power supply.
• Supports hot swap.
