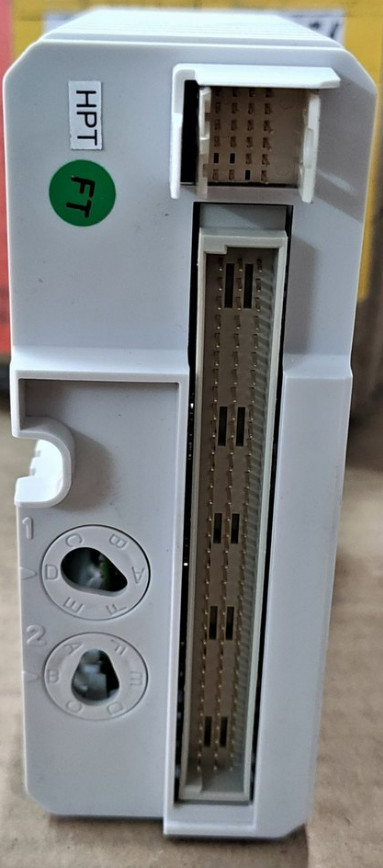

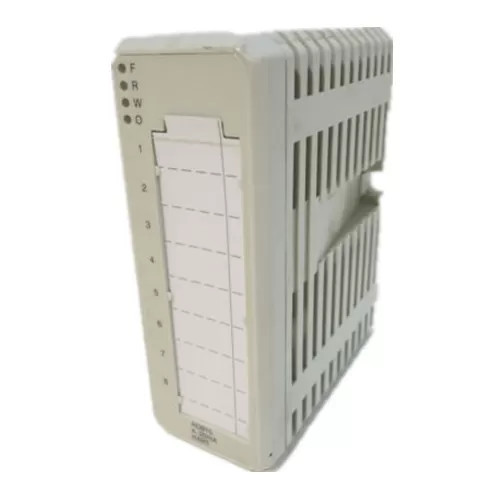

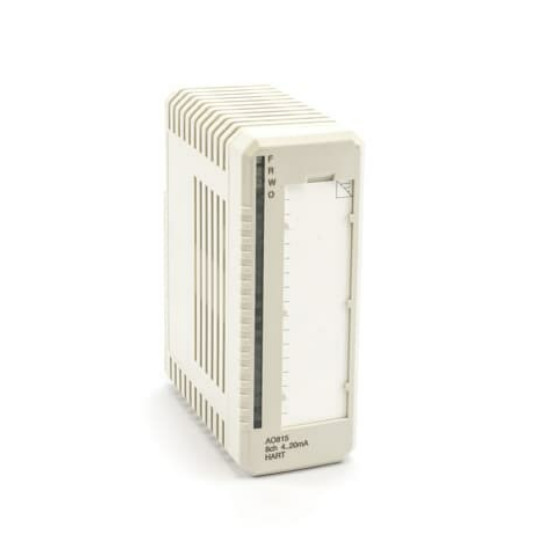

AO815 3BSE052605R1 ABB Analog Input
| Place of Origin | Sweden |
|---|---|
| Brand Name | ABB |
| Certification | CQ,COO |
| Model Number | AO815 |
| Document | AO815 3BSE052605R1.pdf |
| Minimum Order Quantity | 1pc |
| Price | $700 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 9999pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AO815 | Product ID | 3BSE052605R1 |
|---|---|---|---|
| Catalog Description | Analog Input | Product Net Depth / Length | 102 Mm |
| Product Net Height | 119 Mm | Product Net Width | 45 Mm |
| Product Net Weight | 0.23 Kg | Quality | 100% Brand New |
| Warranty | 1 Year | ||
| Highlight | 3BSE052605R1 Analog Input,AO815 ABB Analog Input,3BSE052605R1 ABB Analog Input |
||
Product Description
AO815 3BSE052605R1 ABB Analog Inputt
Product Details:
| Brand name | ABB |
| Model | AO815 |
| Product ID |
3BSE052605R1
|
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
Description:
The AO815 Analog Output Module has 8 unipolar analog output channels.
The module performs self-diagnostic cyclically.
Module diagnostics include:
The module has HART pass-through functionality.
Only point to point communication is supported.
The output filter must be enabled on channels used for HART communication.
External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value is greater than 1 mA (open circuit).
Internal Channel Error is reported if the output circuit can not give the right current value.
Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error or Watchdog error.
Features and benefits
• 8 channels of 4...20 mA
• 1 group of 8 channels isolated from ground
• Analog inputs are short circuit secured to ZP or +24 V
• Input shunt resistors protected to 30 V d.c.
• HART pass-through communication
