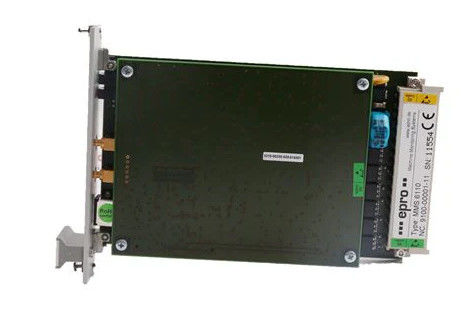

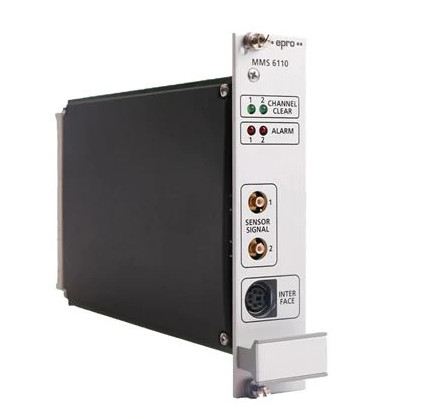

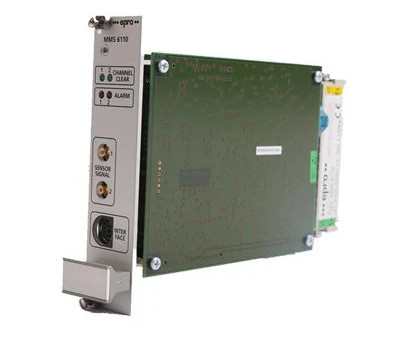

EPRO MMS6110 Dual-Channel Shaft Vibration Monitor

The EPRO MMS 6110 is a dual-channel shaft vibration monitor designed for real-time health monitoring of rotating machinery.

It offers two independent inputs for eddy-current type sensor systems, ensuring comprehensive vibration analysis.

The device features differential sensor inputs, galvanically separated from the power supply, enhancing system integrity.

Input resistance is greater than 100 kOhm, accommodating various sensor configurations.

It supports an input voltage range from 0 to -22 V DC, suitable for diverse measurement needs.

The input frequency range spans from 15 to 2000 Hz, covering a wide spectrum of operational conditions.

Measuring ranges are continuously adjustable via configuration software, with the smallest range starting from 0 to 400 mV.

The largest measurable range extends up to 0 to 8000 mV, providing flexibility for different applications.

Outputs are galvanically separated from all system voltages and supply voltages, ensuring safe and reliable operation.

The device is open and short-circuit proof, enhancing system robustness.

It can operate in parallel with other modules without interference, offering versatility in complex systems.

The nominal voltage for operation is -28 Volts DC, with a nominal current of 20 mA and a maximum of 35 mA.

Compact dimensions of 16 cm x 16 cm x 12 cm and a weight of 0.8 kg facilitate easy integration into existing setups.

Designed for use in industries such as power generation, oil and gas, and manufacturing, it aids in proactive maintenance strategies.

By detecting early signs of mechanical issues, the MMS 6110 helps minimize downtime and extend machinery lifespan.

For detailed specifications and application guidelines, please refer to the official documentation or contact EPRO directly.​
