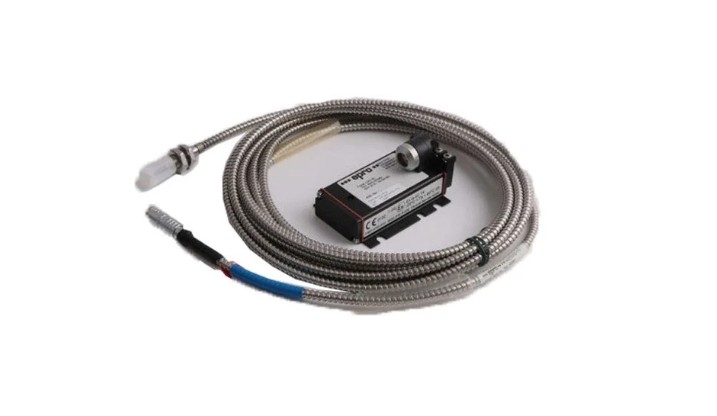

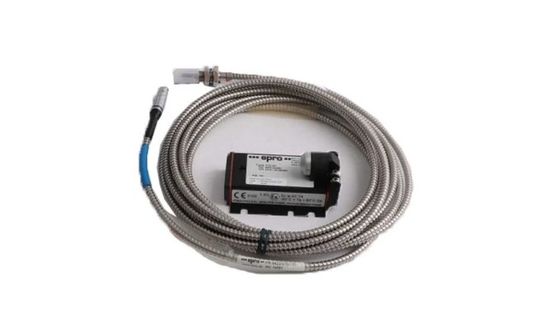

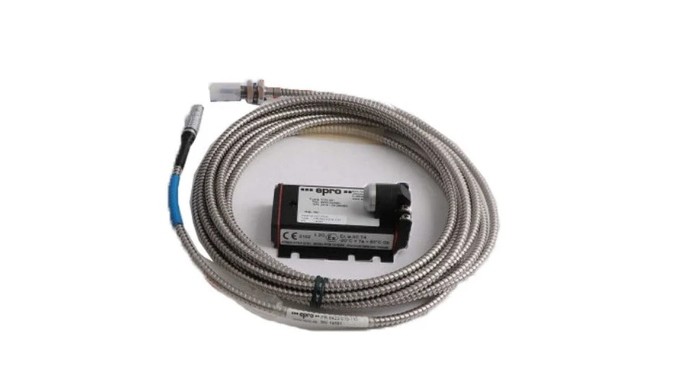

PR6423/003-010 EPRO 8mm Eddy Current Sensor
| Place of Origin | Germany |
|---|---|
| Brand Name | EPRO |
| Model Number | PR6423/003-010 |
| Minimum Order Quantity | 1 |
| Price | $1400 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Id | PR6423/003-010 EPRO 8mm Eddy Current Sensor | Brand | EPRO |
|---|---|---|---|
| Series | PR6423 | Model Number | PR6423/003-010 |
| Warranty | 1 Year | Function | Good |
| Condition | New | ||
| Highlight | 8mm Eddy Current Sensor,PR6423/003-010 Eddy Current Sensor,EPRO Eddy Current Sensor |
||
Product Description
PR6423/003-010 EPRO 8mm Eddy Current Sensor
Product Details:
1. Linear Measurement Range: 2 mm (80 mils)
2. Initial Air Gap: 0.5 mm (20 mils)
3. Incremental Scale Factor (ISF) ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F)
4. Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
5. Measuring Target: Minimum Shaft Diameter: 25 mm (0.79”)
6. Target Material (Ferromagnetic Steel): 42CrMo4 (AISI/SAE 4140) Standard (Other materials available on request)
7. Environmental, General:Protection Class: IP66, IEC 605298.
8. Operating Temperature Range:Sensor incl. 1m Cable: -35 to +200°C (-31 to 392°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
9. Material:Sensor Tip: Case: Stainless Steel, Cable: PTFE (Polytetrafluoroethylene), Connector: Brass, nickel-plated
10. Weight (Sensor with 1m Cable): Approx. 100 grams (3.53 oz)
| PR9268/200-000 | PR9376/010-001 |
| PR9350/02 | PR9376/010-011 |
| PR9268/201-000 | PR9376/20 |
| PR9268/017-100 | MMS3210/022-000 |
| PR9268/301-000 | MMS6110 |
| PR9268/202-000 | MMS6120 |
| PR9268/203-000 | MMS6210 |
| PR9268/302-100 | MMS6250 |
