IS420UCSCH1B-E-V0.1-A GE Mark VIe Gateway Controller
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS420UCSCH1B-E-V0.1-A |
| Minimum Order Quantity | 1pc |
| Price | $11000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IS420UCSCH1B-E-V0.1-A GE Mark VIe Gateway Controller | Product ID | IS420UCSCH1B-E-V0.1-A |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Mark VIe Gateway Controller |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | IS420UCSCH1B-E-V0.1-A Gateway Controller,GE Mark VIe Gateway Controller |
||
Product Description
IS420UCSCH1B-E-V0.1-A GE Mark VIe Gateway Controller
Product Details:
Part Number :IS420UCSCH1B-E-V0.1-A
Product Family Mark VIeS Functional Safety System
Product Name Mark VIe Gateway Controller
Platform Configuration Supported Features: EFA, Embedded EtherCAT, and Embedded PPNG
Altitude for Normal Operation: 0-1000 m at 101.3 to 89.9 kPa
Memory Type:2 GB DDR3-1066 SDRAM, with error correcting code (ECC)
NVSRAM: 3067 Nonvolatile Program Variables, 64 Totalizers, and 338 Forces
Storage Temperature:-40 to 85°C (-40 to 185 °F)
Dimensions with Mounting: H 8.03 in x D 5.99 in x W 2.17 in
HMI:ControlST V07.00.00C or Later
Redundancy Configurations: Simplex, Dual

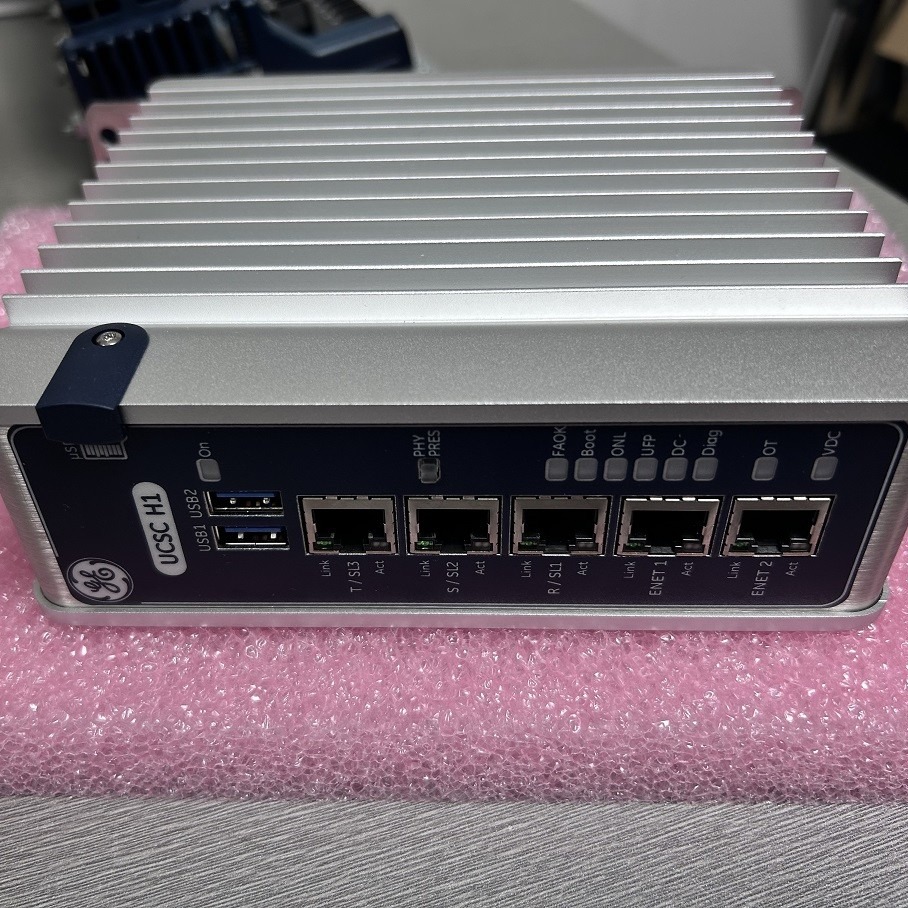

Number of Ethernet Ports: 6, 5 on Front Panel, and 1 on Bottom for Predix Connectivity

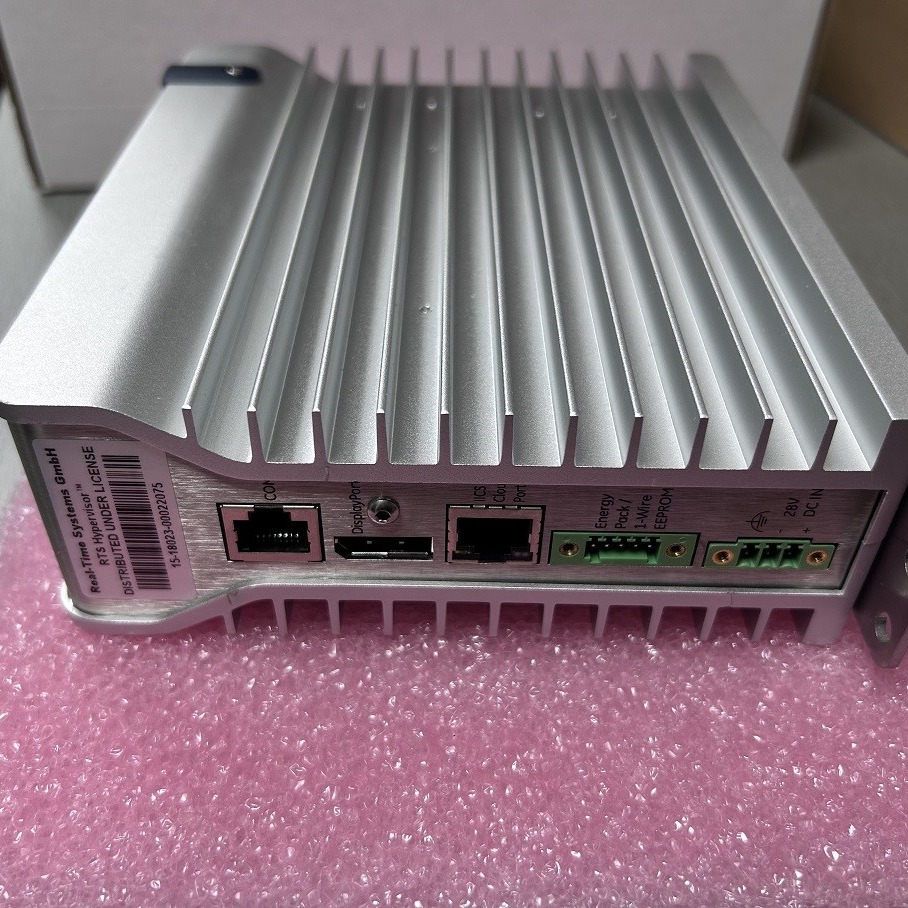

The IS420UCSCH1B-E-V0.1-A Quad-Core Controller is another version of the UCSC controller that has a quad-core and operates on 1.2 GHz AMD G-Series. This controller was designed by General Electric to be used in the Mark VIe Series. This controller is the main controller mentioned in the GEH-6855 Volume II manual and is described as being a real-time hypervisor controller with a QNX Neutrino multi-task capable operating system. The QNX operating system is used in highly-reliable high-speed industrial applications.
