IS420YDOAS1B GE Discrete Output Module for Industrial
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS420YDOAS1B |
| Minimum Order Quantity | 1pc |
| Price | $6000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IS420YDOAS1B GE Discrete Output Module | Product ID | IS420YDOAS1B |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Discrete Output Module |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | IS420YDOAS1B Discrete Output Module,GE Discrete Output Module |
||
Product Description
IS420YDOAS1B GE Discrete Output Module
Product Details:
Technology: Surface-Mount
Relay and Coil Monitoring: 12 Relay/Coil Monitors
Redundancy Compatibility : Simplex or TMR
Processor Board: BPPC
Part Number: IS420YDOAS1B
Ambient Temperature Range: -40 to 158 °F
I/O Pack Response Time: 6 ms
Functional Abbreviation: YDOA
Dimensions: H 3.25 in x W 1.65 in x D 4.78 in

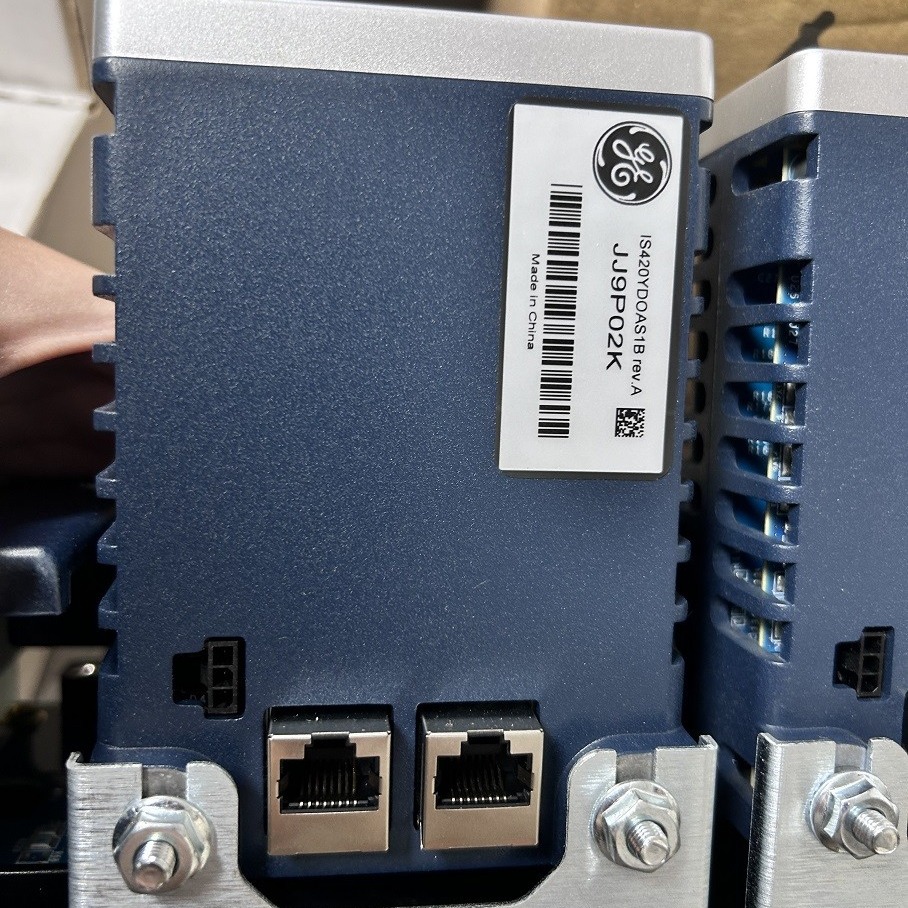

Discrete Output I/O Pack IS420YDOAS1B can provide electrical interfaces between up to two Ethernet input-output networks as well as a discrete output terminal board. This pack can control up to twelve relays and will accept terminal board-specific feedback. All of the inputs to the I/O pack will be sent through dual Ethernet RJ454 connectors as well as three-pin power input. A DC37 pin connector is used for the outputs which will connect directly to the associated terminal board connectors. If visual diagnostics are needed they will be provided through the LED indicators on the front of the pack. As mentioned above the IS420YDOAS1B I/O pack can provide diagnostic LEDs; typically the twelve LEDs will be yellow to provide an indication for each output that command is energizing the relay. The BBPx processor LEDs will be used to indicate the diagnostics needed as well.
