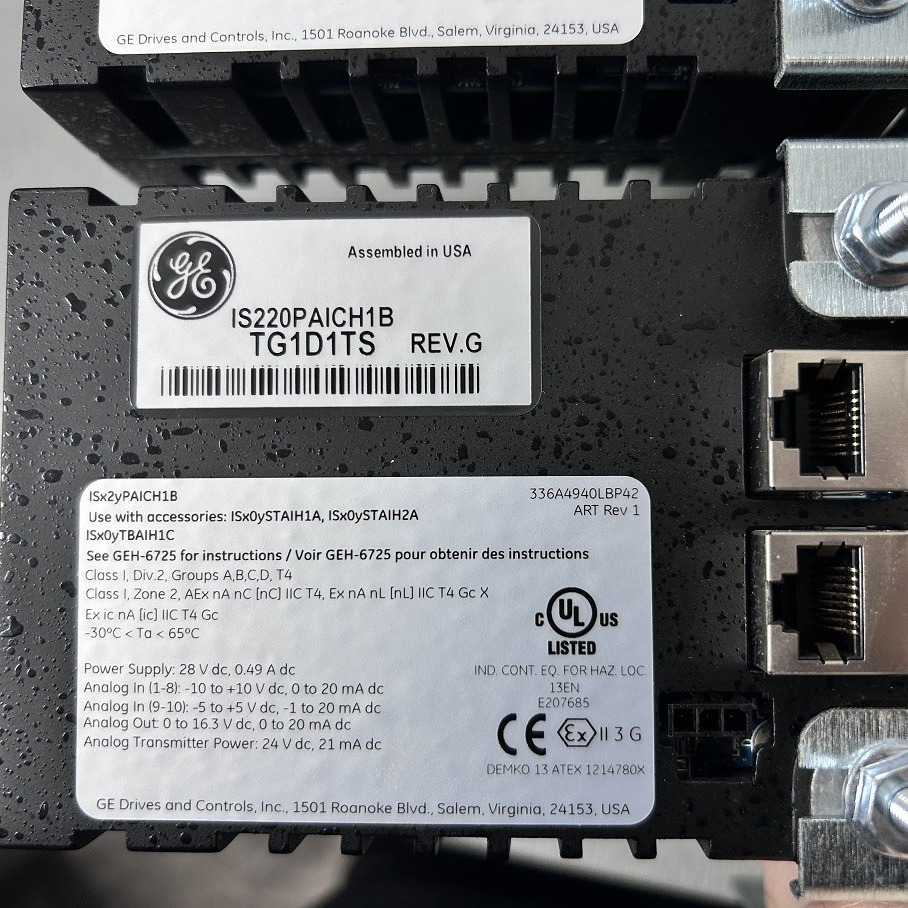

IS220PAICH1B GE Analog Input / Output Module Net Height 200mm
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS220PAICH1B |
| Minimum Order Quantity | 1pc |
| Price | $4500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IS220PAICH1B GE Analog Input/Output Module | Product ID | IS220PAICH1B |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Analog Input/Output Module |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Analog Input Output Module,IS220PAICH1B,IS220PAICH1B GE Analog Input Output Module |
||
Product Description
IS220PAICH1B GE Analog Input/Output Module
Product Details:

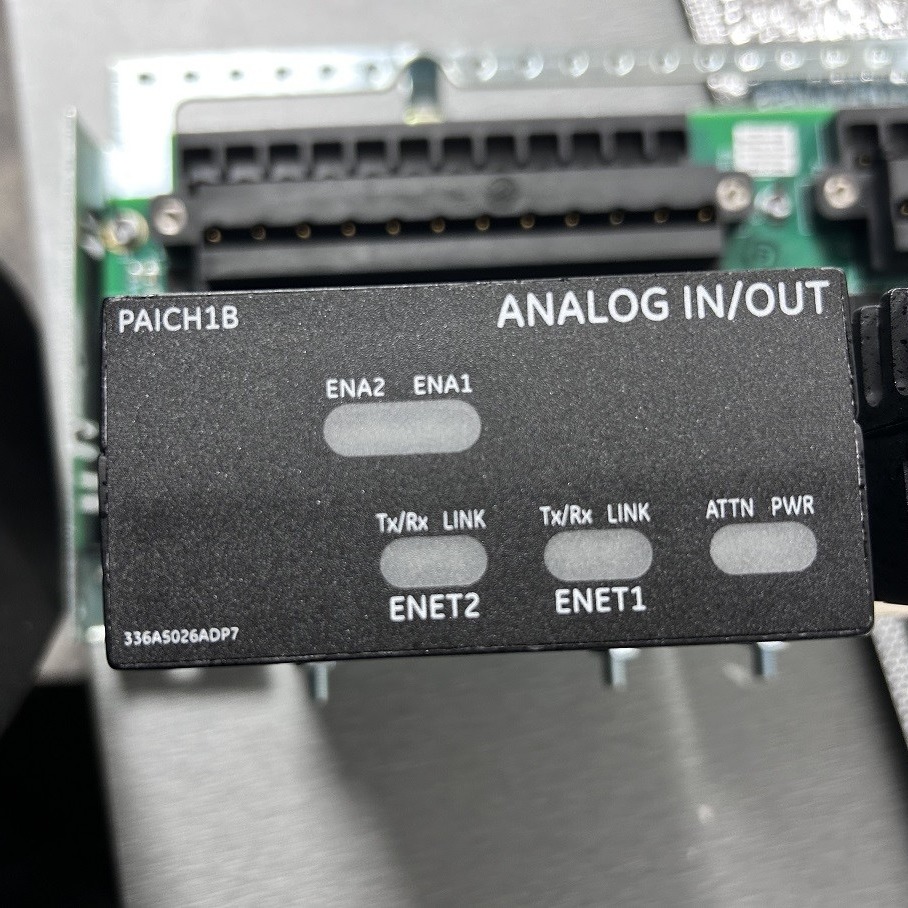

The IS220PAICH1B is a GE Analog I/O pack from the Mark VIe series. The PAIC pack serves as the electrical interface between one or two I/O Ethernet networks and an analog input terminal board. The pack includes a processor board shared by all Mark VIe distributed I/O packs and an acquisition board dedicated to the analog input function.The pack can handle up to ten analog inputs, the first eight of which can be configured as 5 V or 10 V inputs or 0-20 mA current loop inputs. The last two inputs can be set to 1 mA or 0-20 mA current inputs.The load terminal resistors for the current loop inputs are located on the terminal board, and the PAIC senses voltage across these resistors. The PAICH1 also has two 0-20 mA current loop outputs. The PAICH2 includes additional hardware to support 0-200 mA current on the first output. The pack is powered by a three-pin power input and two RJ45 Ethernet connectors. Output is via a DC-37 pin connector that is directly connected to the associated terminal board connector. LED indicator lights provide visual diagnostics.
