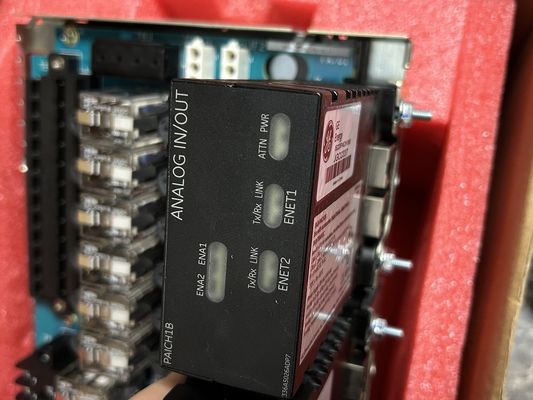

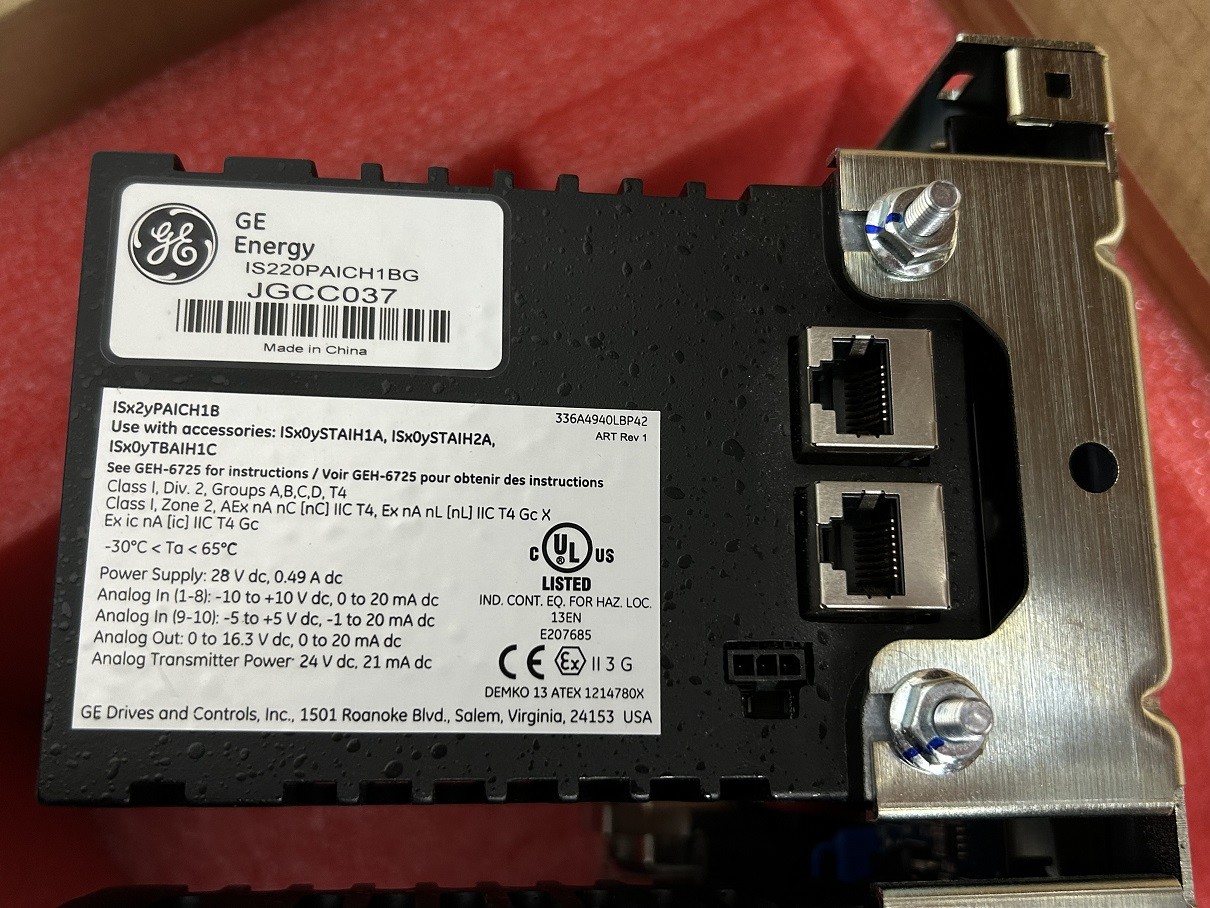

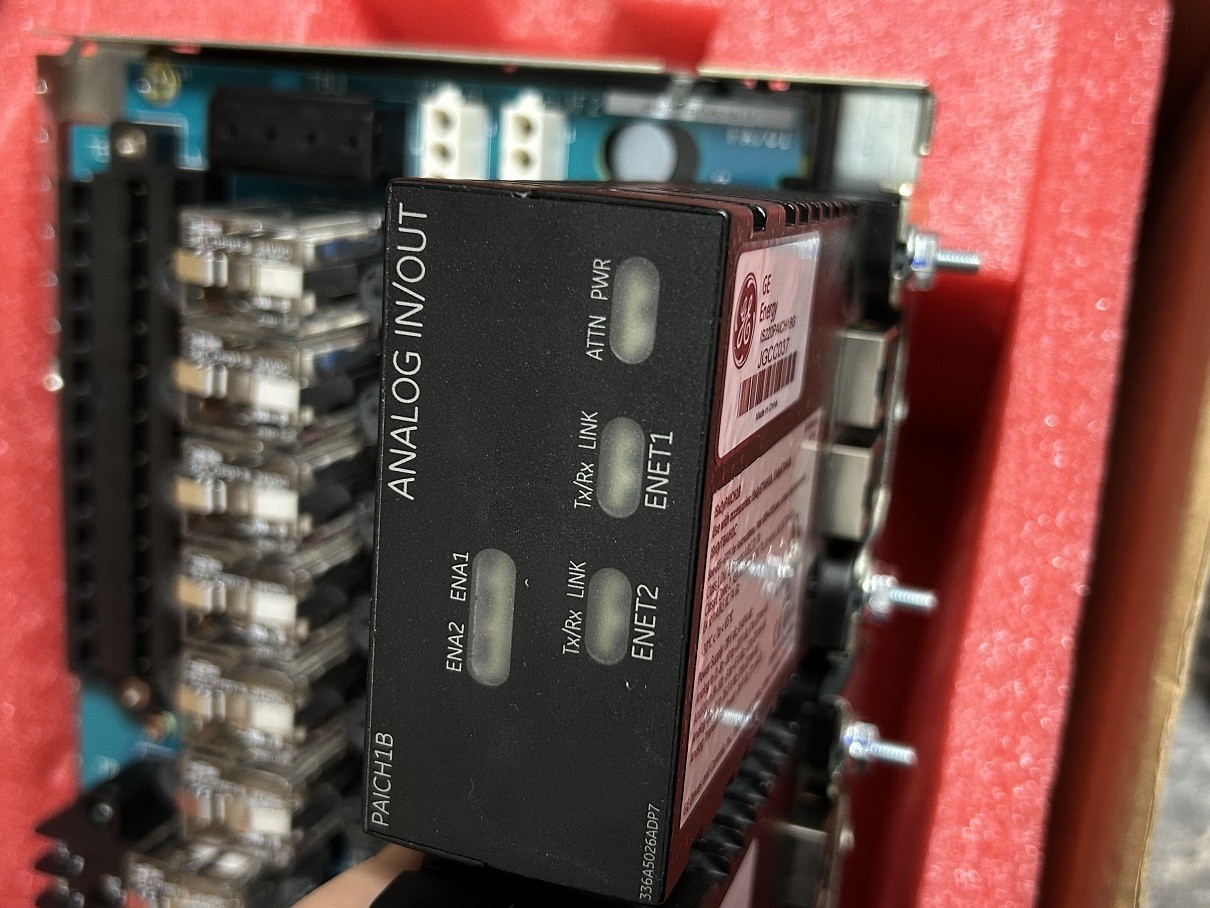

IS220PAICH1BG GE Analog Input/Output Module
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS220PAICH1BG |
| Minimum Order Quantity | 1pc |
| Price | $7500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IS220PAICH1BG GE Analog Input/Output Module | Product ID | IS220PAICH1BG |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Analog Input/Output Module |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | IS220PAICH1BG |
||
Product Description
IS220PAICH1BG GE Analog Input/Output Module
Product Details:
The Analog Input/Output (PAIC) pack provides the electrical interface between one or two I/O Ethernet networks and an analog input terminal board. The pack contains a processor board common to all Mark* VIe distributed I/O packs and an acquisition board specific to the analog input function. The pack is capable of handling up to 10 analog inputs, the first eight of which can be configured as ±5 V or ±10 V inputs, or 0-20 mA current loop inputs. The last two inputs may be configured as ±1 mA or 0-20 mA current inputs. The load terminal resistors for current loop inputs are located on the terminal board and voltage is sensed across these resistors by the PAIC. The PAICH1 also includes support for two 0-20 mA current loop outputs. The PAICH2 includes extra hardware to support 0-200 mA current on the first output. Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector.
