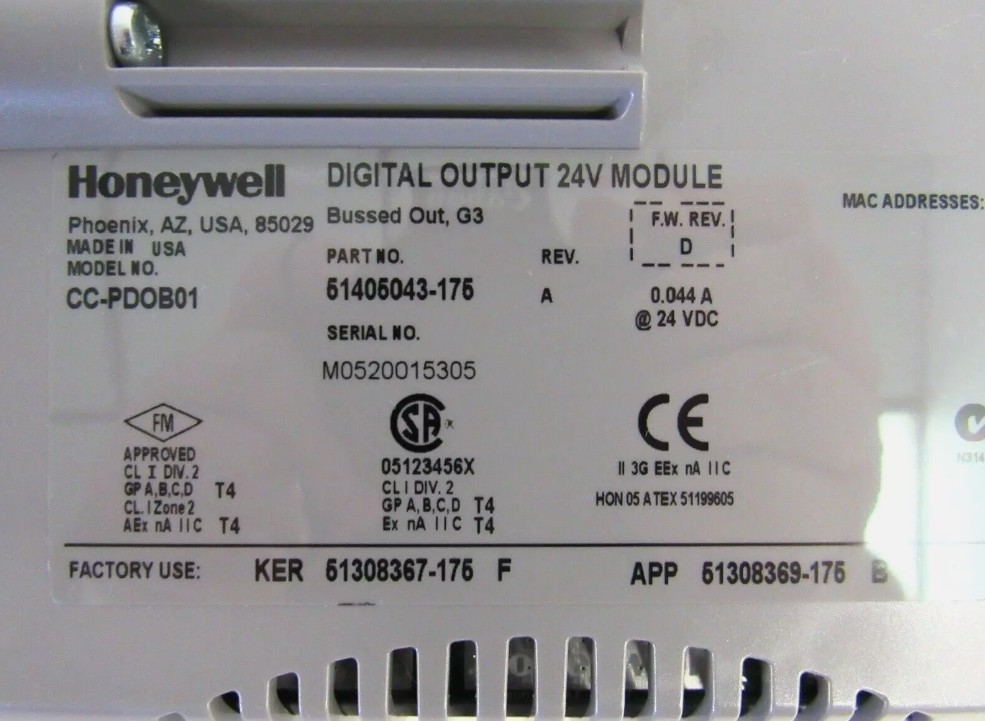

CC-PDOB01 51405043-175 Honeywell Digital Output 24V Module

CC-PDOB01 51405043-175 Honeywell Digital Output 24V Module​

Product Details:

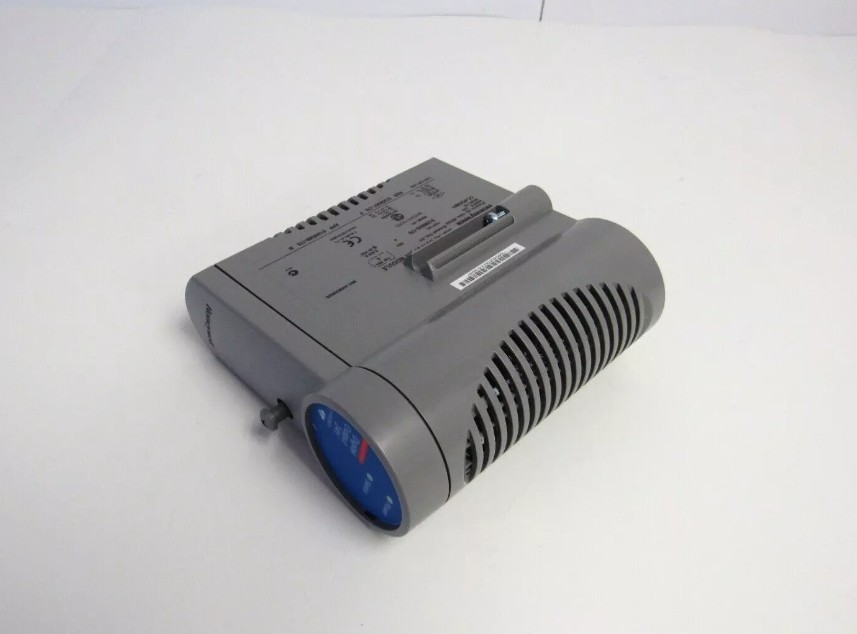

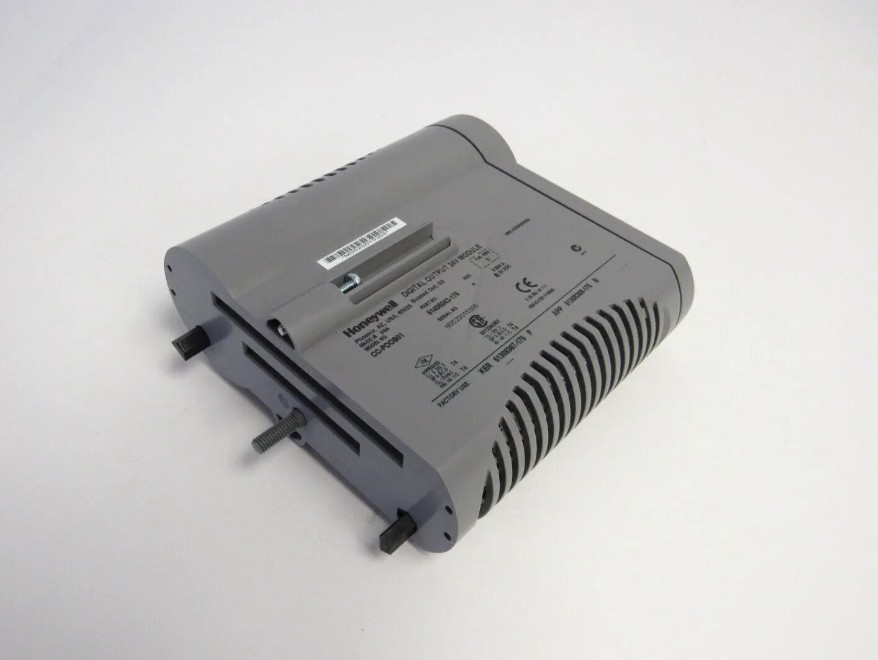

The Honeywell CC-PDOB01 represents a digital output module that offers 32 channels of 24 VDC output. It utilizes a bused-out design, connecting all outputs to a single bus, which provides a cost-effective solution for integrating a large number of digital outputs into a system. The CC-PDOB01 is compatible with various Honeywell PLCs, including the L71, L72, L73, and L75 models. It also extends its compatibility to other PLCs utilizing the Modbus RTU protocol.

The C300 controller and Series C I/O provides useful, maintainable process equipment

connections in a smaller footprint than existing competitors and Honeywell equivalent products. Installing Series C I/O modules contributes to overall total installed cost savings.

IOTA sizes vary based on the application. In general, an analog module has 16 points and resides on a 6 inch (152mm) IOTA for non-redundant applications and a 12 inch (304mm) IOTA for redundant applications. A discrete module has 32 points and resides on a 9-inch (228mm) IOTA for non-redundant applications and a 12 inch (304mm) IOTA for redundant applications. Specific information on the size of a particular module is described in the Model Number Table.

The CC-PDIL01 is a digital input module within the Honeywell Experion Series c I/0 system designed to handle 24V DC signals. It offers robust functionality and features suitable for industrial applications,ensuring reliable operation in challenging environments.

The Honeywell CC-PDIL01 is a digital input module designed for industrial automation and process control applications. It is specifically designed to accept 24VDC signals as discrete inputs. This module is commonly used in Experion Series C systems to interface with various field devices and sensors.

The CC-PDIL01 is a digital input module designed for industrial automation applications. It provides a reliable and cost-effective solution for interfacing digital signals with control systems.The CC-PDIL01 accepts 24VDC signals from external devices and provides a digital signal indicating the presence or absence of an input. It includes internal diagnostics for data integrity and open wire detection and optional redundancy feature for enhanced reliability. The CC-PDIL01 module supports both internal and external field power options and eliminates the need for marshalling power and provides safe field power supply clear indication of input status. It ensures electrical isolation between the module and external devices detects and annunciates open field wires.

The CC-PDIL01 supports both digital and analog input/output configurations, allowing it to interface with a wide range of field devices, such as sensors and actuators. It can be easily integrated into existing systems, making it a scalable solution for evolving process control needs. Built to withstand harsh industrial environments, the module offers high reliability and availability, crucial for continuous process operations. The Honeywell CC-PDIL01 is a crucial component for modern automation systems, providing flexibility, reliability, and ease of use for managing input and output devices in complex industrial environments.
