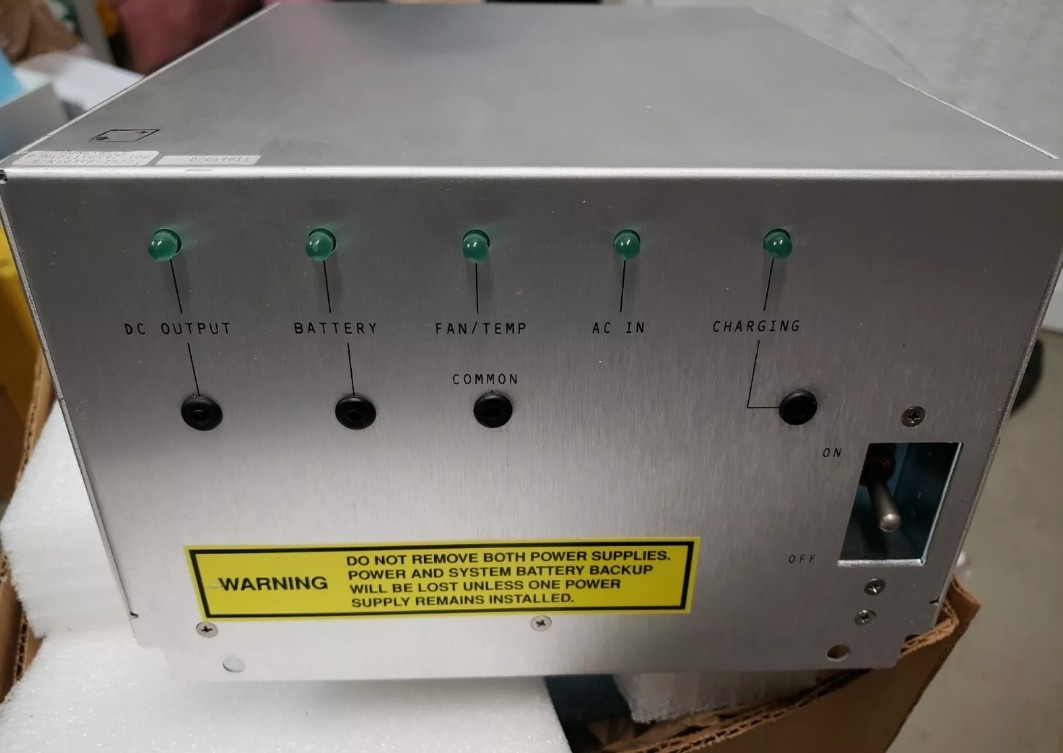

Honeywell ACX631 51198947-100 HPM Power Supply

Honeywell ACX631 51198947-100 HPM Power Supply

Product Details:

• Manufacturer : Honeywell

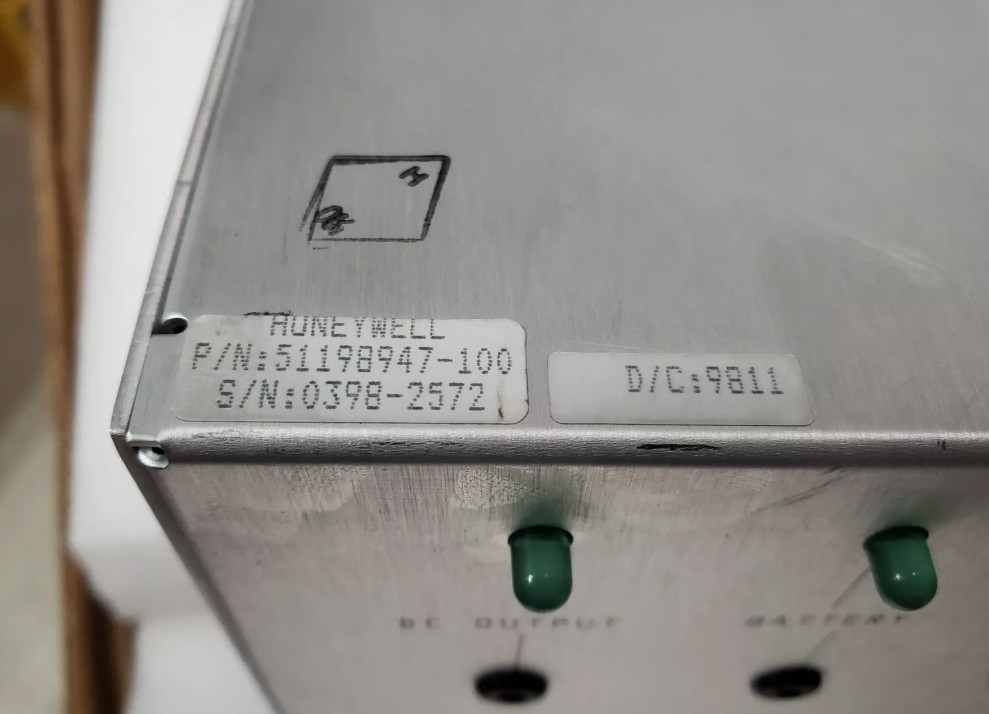

• Product No : 51198947-100

• Product type : HPM Power Supply (DCS Parts)

• The power supply is an AC input, AC/DC output power supply intended for use in Honeywell UCN (PM, APM or HPM) equipment cabinets.

• The supply operates from line voltage 85 to 264 VAC, or (48 Vdc) batteries, and is CE-compliant.

• The DC output is nominally rated at the output pins to be 25.25 Vdc at a 10 amp load when powered from the AC Line, and 24.25Vdc when powered from 48V battery. The design also includes a charging circuit for the 48V battery. There is also a nominal 6 Vac, line-frequency output rated at 35 milliamps load, to provide line frequency synchronization.

• The full load operating temperature range is -20 to +55 deg C. Derating of the output load capability applies linearly above 55°C at 0.5 amp/deg C to a maximum temperature of +65 deg C.

• Two or more power supplies may be used with their outputs paralleled.

• The supply is in compliance with all the applicable directives of the European Economic Community (EEC).
