ABB 216DB61 HESG334063R100 Binary I/P And Tripping Unit Board
| Place of Origin | Sweden |
|---|---|
| Brand Name | ABB |
| Certification | CQ,COO |
| Model Number | 216DB61 |
| Minimum Order Quantity | 1pc |
| Price | $3000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 9999pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 216DB61 | Product ID | HESG334063R100 |
|---|---|---|---|
| Catalog Description | 216DB61 HESG334063R100 Binary I/P And Tripping Unit Board | Product Net Depth / Length | 136 Mm |
| Product Net Height | 60mm | Product Net Width | 85mm |
| Product Net Weight | 0.8kg | Quality | 100% Brand New |
| Warranty | 1 Year | ||
| Highlight | ABB 216DB61 HESG334063R100 Tripping Unit Board,HESG334063R100 Tripping Unit Board |
||
Product Description

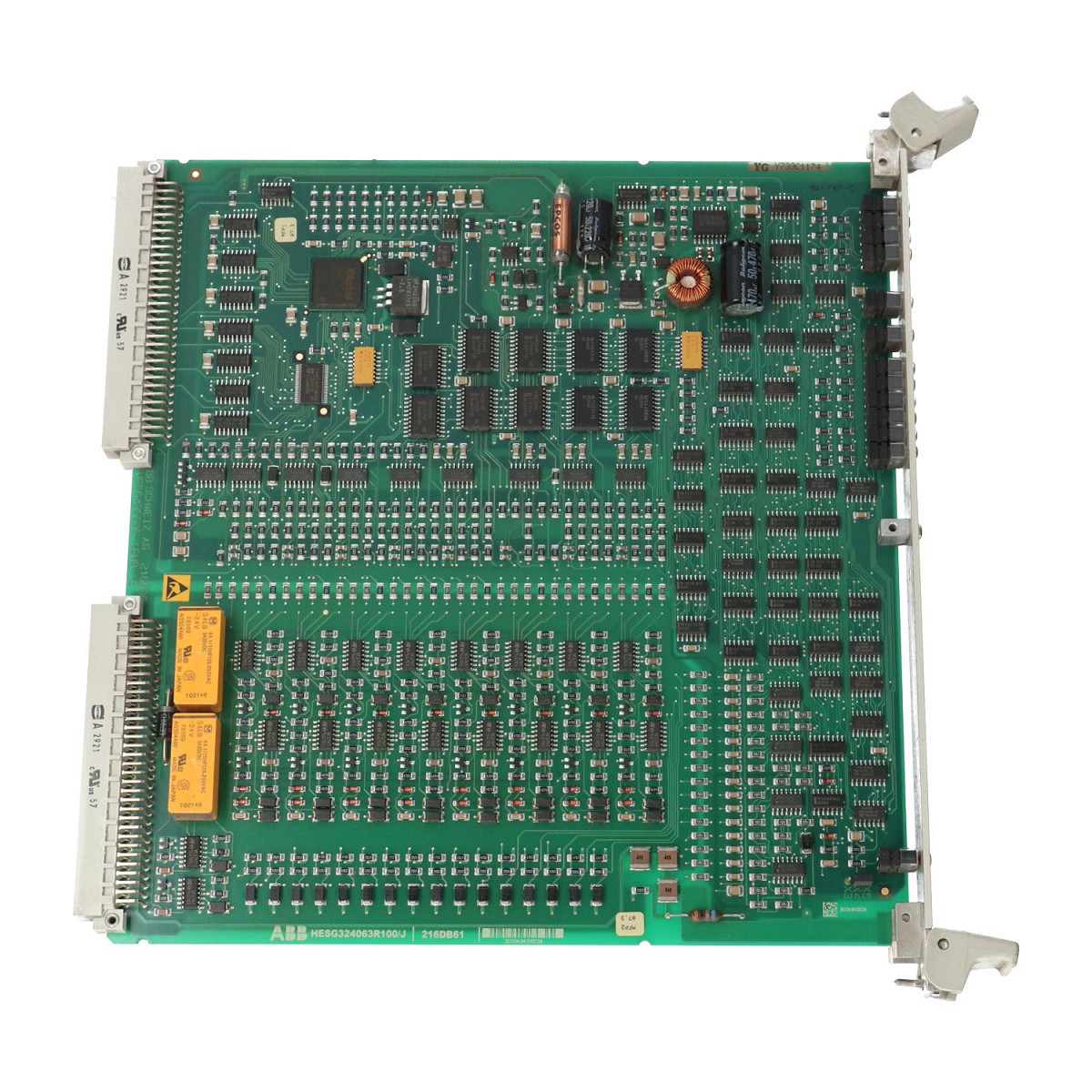

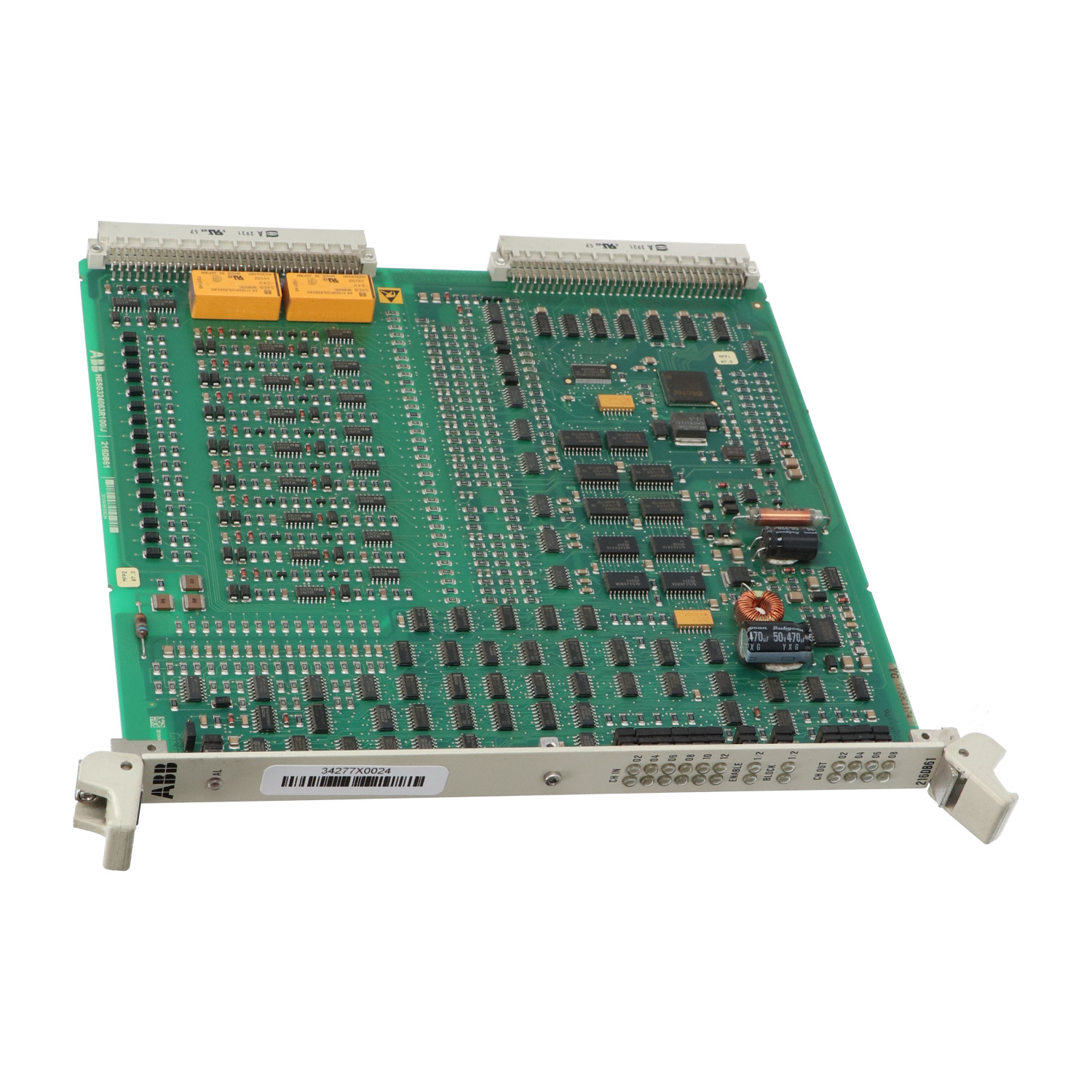

ABB 216DB61 HESG334063R100 Binary I/P And Tripping Unit Board
Product Details:
| Brand name | ABB |
| Model | 216DB61 |
| Product ID | HESG334063R100 |
| Condition | NEW |
| Gross weight | 1.5kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
The binary I/P and tripping unit comprises 16 I/P and 8 O/P channels.
The O/P channels are used to transfer the tripping commands of activated protection functions to the 216GA62 tripping relay module.
The I/P channels are used for external signals from the 216GE61 I/P relay module, which it transfers to the 216VC62a processing unit via the bus.
connector "a" (upper) : I/P channels CHI01...CHI16
connector "b" (lower) : channels CHO01...CHO08.

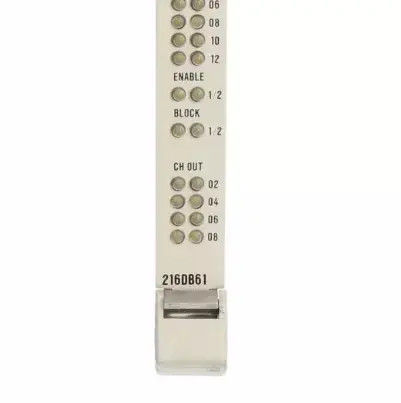

The position of the plug-in jumper BR1 on the PCB of 216DB61 determines whether the "ENABLE" and "BLOCK CH OUT" functions are operational or not, i.e.
