Honeywell 10310/2/1 Earth Leakage Detector
| Place of Origin | USA |
|---|---|
| Brand Name | Honeywell |
| Model Number | 10310/2/1 |
| Minimum Order Quantity | 1pc |
| Price | $800 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Honeywell 10310/2/1 Earth Leakage Detector | Product ID | 10310/2/1 |
|---|---|---|---|
| Product Net Length | 350mm | Product Net Width | 120mm |
| Product Net Height | 50mm | Condition | New |
| Warranty | 1 Year | ||
| Highlight | Honeywell 10310/2/1 Earth Leakage Detector,Honeywell Earth Leakage Detector,10310/2/1 Earth Leakage Detector |
||
Product Description

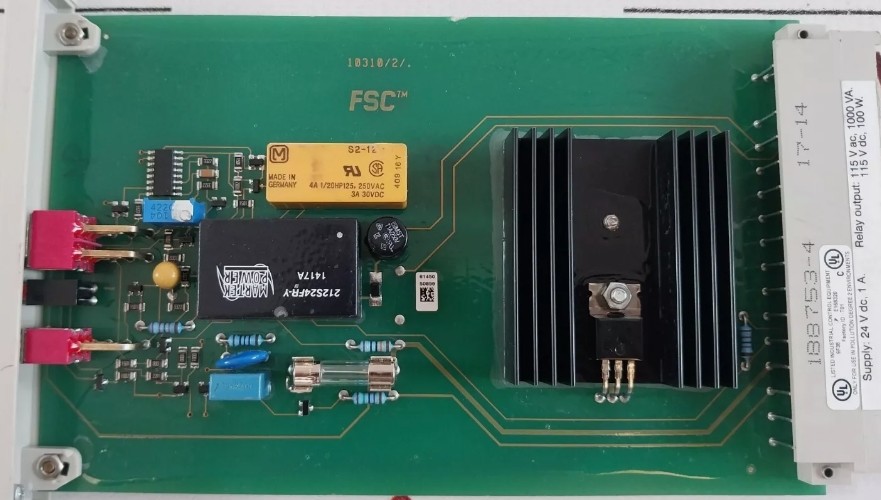

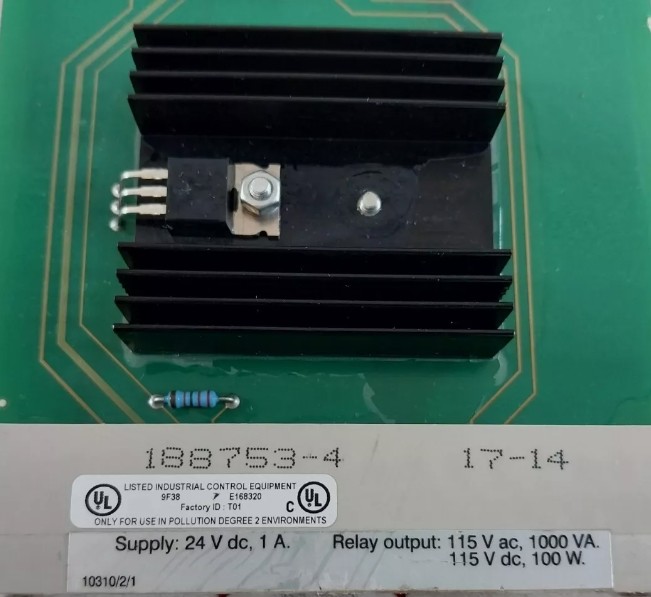

Honeywell 10310/2/1 Earth Leakage Detector
Honeywell 10310/2/1 Earth Leakage Detector.pdf
Product Details:
The 10310/2/1 module is an earth leakage detector (ELD) for 24 Vdc systems. It has a manually operated self-test and earth connection monitor (switch 2 in 'TEST' position). The ELD can be used to monitor:
• 24 Vdc, 48 Vdc and/or 60 Vdc systems , or
• 110 Vdc systems.
The ELD module connects earth level with –12 Vdc (referenced to the 0 V connection of the 24, 48, 60 and/or 110 Vdc supply). This connection is:
• continuous (switch 1 in 'DC' position), or
• interrupting at 1 Hz (switch 1 in '1 Hz' position), or
• interrupting at 0.25 Hz (switch 1 in '1/4 Hz' position).
With switch 1 in the '1 Hz' or '1/4 Hz' position, the green 'MODE' LED on the module front flashes at the selected connection frequency.
Switch 1 is normally used in the 'DC' position.
The '1 Hz' position should only be used to accommodate for solenoids or relays that could stay energized by the negative earth voltage. The '1/4 Hz' position can be used for locating earth faults. Locating earth faults requires a current clamp (e.g. the C37 clamp from Chauvin Arnoux) and a voltmeter (200 mV AC range).
| CC-TAIX11 51308365-175 |
| CC-TDOB11 51308373-175 |
| CC-TDIL01 51308386-175 |
| CC-TAIM01 51305959-175 |
| CC-TAIX01 51308363-175 |
| CC-TCF901 51308301-175 |
| CC-TDOB01 51308371-175 |
| CC-TAOX11 51308353-175 |
