Honeywell 10201/2/1 Fail-Safe Digital Output Module
| Place of Origin | USA |
|---|---|
| Brand Name | Honeywell |
| Model Number | 10201/2/1 |
| Minimum Order Quantity | 1pc |
| Price | $1000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Honeywell 10201/2/1 Fail-Safe Digital Output Module | Product ID | 10201/2/1 |
|---|---|---|---|
| Product Net Length | 350mm | Product Net Width | 120mm |
| Product Net Height | 50mm | Condition | New |
| Warranty | 1 Year | ||
| Highlight | Honeywell Fail-Safe Digital Output Module,Honeywell 10201/2/1 Fail-Safe Module,Honeywell 10201/2/1 Digital Output Module |
||
Product Description

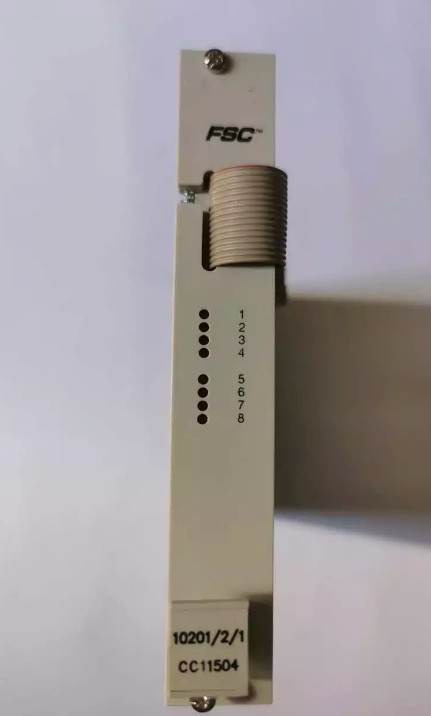

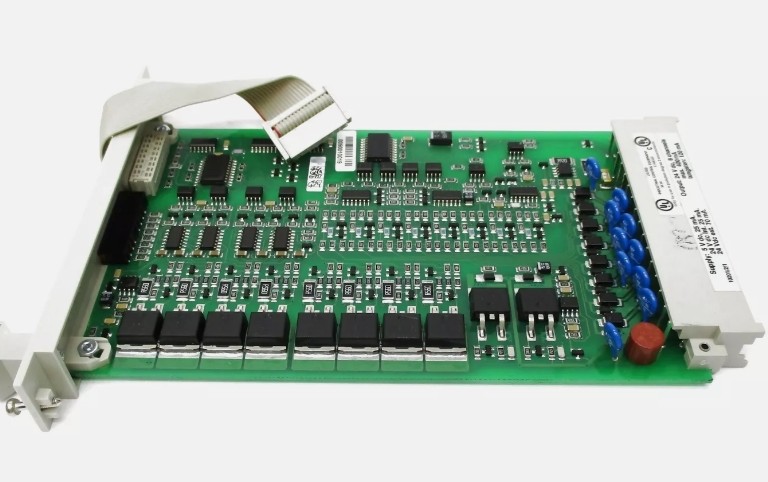

Honeywell 10201/2/1 Fail-Safe Digital Output Module
Honeywell 10201/2/1 Fail-Safe Digital Output Module.pdf
Product Details:
The fail-safe digital output module 10201/2/1 has eight 24 Vdc, 550 mA output channels to drive loads up to 13 W. These loads may be resistive (e.g. lamps) or inductive (e.g. solenoids). For inductive loads, a suppression diode is included on each output.
The outputs, including the suppression diodes, are fully tested and may therefore be used for fail-safe applications. Within the configured process safety time, the outputs are tested for:
• ability to de-energize, • ability to de-energize the group (via secondary means),
• crosstalk between outputs, and
• functioning of the suppression diodes
The outputs are split into two groups of four outputs each. Each group has its own secondary means of de-energization. This increases the shutdown selectivity in case of a channel failure. The secondary means of de-energization enables the watchdog and/or the processor to de-energize the outputs, irrespective of the result of the application function.
| CC-TAIX11 51308365-175 |
| CC-TDOB11 51308373-175 |
| CC-TDIL01 51308386-175 |
| CC-TAIM01 51305959-175 |
| CC-TAIX01 51308363-175 |
| CC-TCF901 51308301-175 |
| CC-TDOB01 51308371-175 |
| CC-TAOX11 51308353-175 |
