DS200DTBBG1ABB GE Terminal Digital Connector Board Mark V Ge Turbine Control

DS200DTBBG1ABB GE Terminal Digital Connector Board Mark V Ge Turbine Control

Product Details:

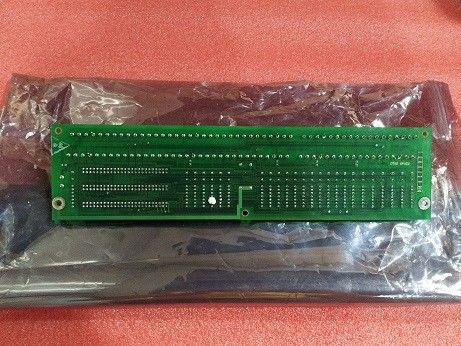

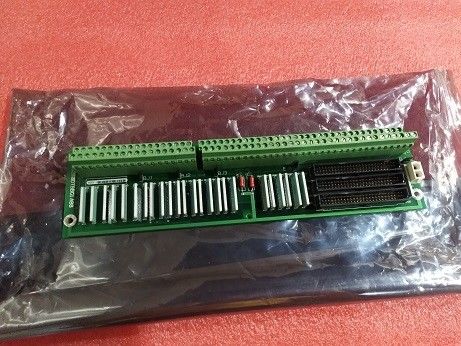

The GE Terminal Digital Connector Board DS200DTBBGIABB features 2 terminal blocks with terminals for 95 signal wires in each. It also

contains 3 50-pin connectors. The IDs for the 40-pin connectors are JFF, JFG, and JFH. It also is populated with bayonet connectors and 5

jumpers.

The board is 3 inches in height and 11.5 inches in length. It has 1 hole in each corner for the installer to attach the board to the board rack in the

interior of the drive. The drive has multiple positions that can accept the installation of the board. However, it is best practice to install the board in

the same position as the old board it is replacing. This is because of the large number of signal wires and ribbon cables attached to it. Cable

routing is very important. If the cables are not routed properly interference can result and also the cooling of the drive interior can be negatively

affected. The drive interior has many power cables and signal wires and ribbon cables. The power cables if routed too near the signal wires can

interfere with the signals. This might result in inaccurate signals being transmitted and received by the board. The solution is to route the power

cables as far as possible from the signal wires.

The other problem that can result from improper cable routing is reduced air flow within the drive. This can occur if bundles of cables block the

flow of air in front of air vents or around components that generate heat.
