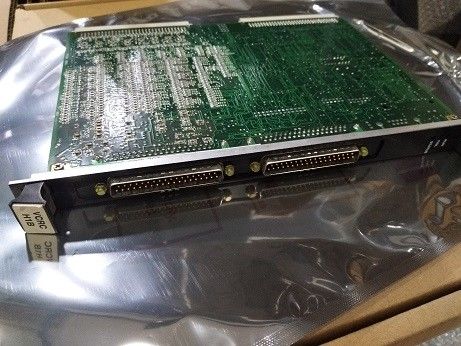

IS200VCRCH1B GE Contact Input/Relay Output Board Mark VI Board Component Circuit Board ASM
|Name||IS200VCRCH1B Mark VI Board Component GE Turbine Control||Product ID||IS200VCRCH1B|
|Series||Mark VIe||Function||Discrete Output Pack|
|Product Net Depth/Length||330mm||Product Net Height||200mm|
|Product Net Width||100mm||Product Net Weight||2kg|
is200 vcr h1b,
Circuit Board ASM
IS200VCRCH1B Mark VI board component GE Turbine Control
The IS200VCRCH1B is a GE Mark VI board component. The MKVI is part of the Speedtronic family of gas and steam turbine management
systems that have been developed and improved by General Electric since the release of the Mark I in the 1960s. The MKVI is the fifth
management system in the Speedtronic line and features triple redundant controls on all protection parameters and critical controls as well as
advanced control mechanisms for the protection and monitoring of the turbine system.
The IS200VCRCH1B functions as a Discrete Input/Output board. This is a single-slot board that has the same functionality as a VCCC board but
does not include a daughterboard, thus takes up less rack space. However, as relay outputs for this board use the J3/J4 ports on the VME rack,
cables must be placed on the front panel. If this is undesirable, use a VCCC board instead of a VCRC PCB.
