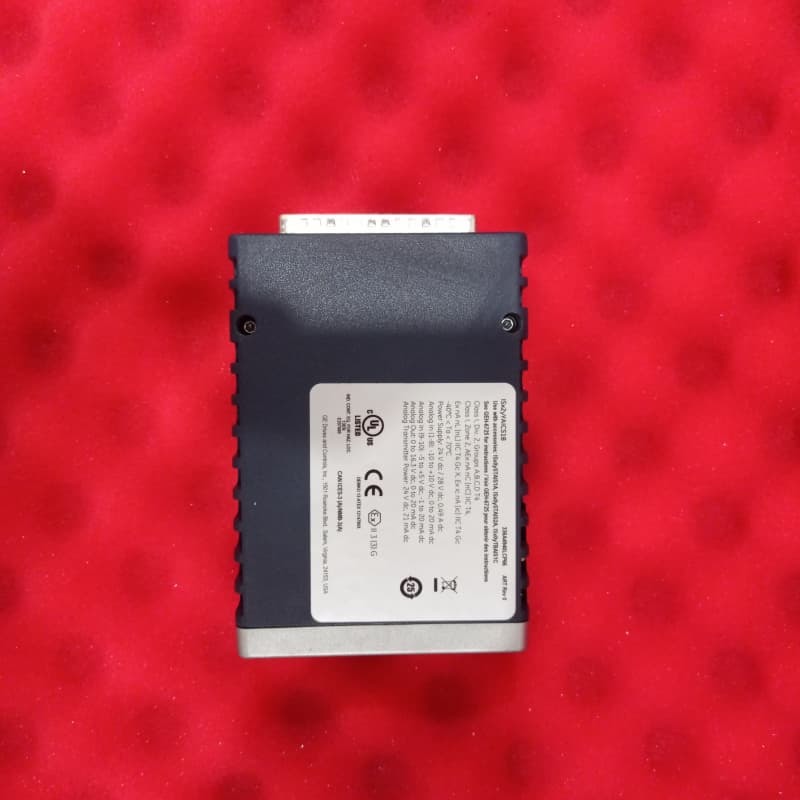

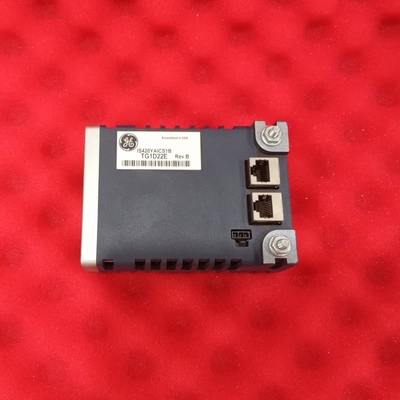

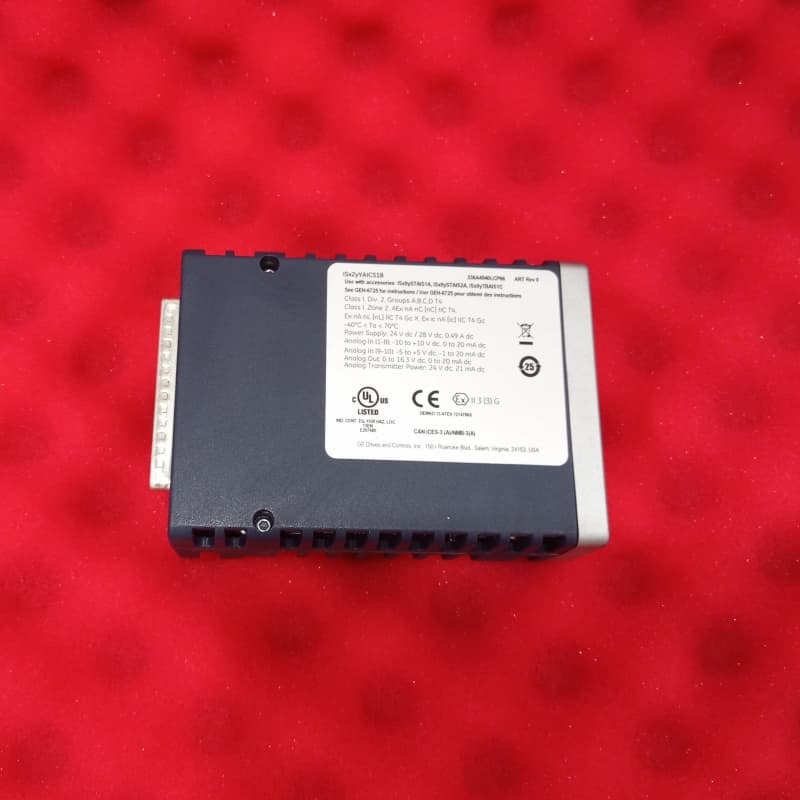

GE IS420YAICS1B Analog I/O Module for Turbine Control
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS420YAICS1B |
| Minimum Order Quantity | 1pc |
| Price | $6000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS420YAICS1B Analog I/O Module | Product ID | IS420YAICS1B |
|---|---|---|---|
| Series | Analog I/O Terminal Board | Function | IO PACK, DISCRETE IO MODULE |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Turbine Control analog I/O module,IS420YAICS1B I/O module,Turbine Control system module |
||
Product Description
GE IS420YAICS1B Analog I/O Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS420YAICS1B Analog I/O Module |
| Product ID | IS420YAICS1B |
| Series | Analog I/O Terminal Board |
| Function | IO PACK, DISCRETE IO MODULE |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS420YAICS1B is an Analog I/O Module part of the Mark VIeS Series, designed for GE's distributed control systems. Serving as a critical interface between 1-2 I/O Ethernet networks and analog terminal boards, it integrates a shared Mark VIeS Safety processor board (BPPC) and a dedicated analog acquisition board.
Key Features
- Analog Signal Handling: 10 analog inputs (8 configurable as 5V/10V or 4-20mA, 2 as 1mA or 0-20mA) with dual 0-20mA current loop outputs
- High Precision: 16-bit ADC resolution for 0.1% full-scale accuracy
- Connectivity: Dual RJ45 Ethernet ports, 3-pin 28VDC power input, and DC-37 pin connector with soft-start capability for hot-plugging
- Redundancy Support: Compatible with simplex or Triple Modular Redundant (TMR) configurations
- Noise Suppression: Hardware filters and adjustable software low-pass filters with 60dB AC common-mode rejection at 60Hz
- Robust Design: Operates in -40 to 158°F (-40 to 70°C) with power-up self-tests and continuous monitoring
- Compatibility: Works with TBAISIC/STAIS#A terminal boards and ControlST V06.01+ software
