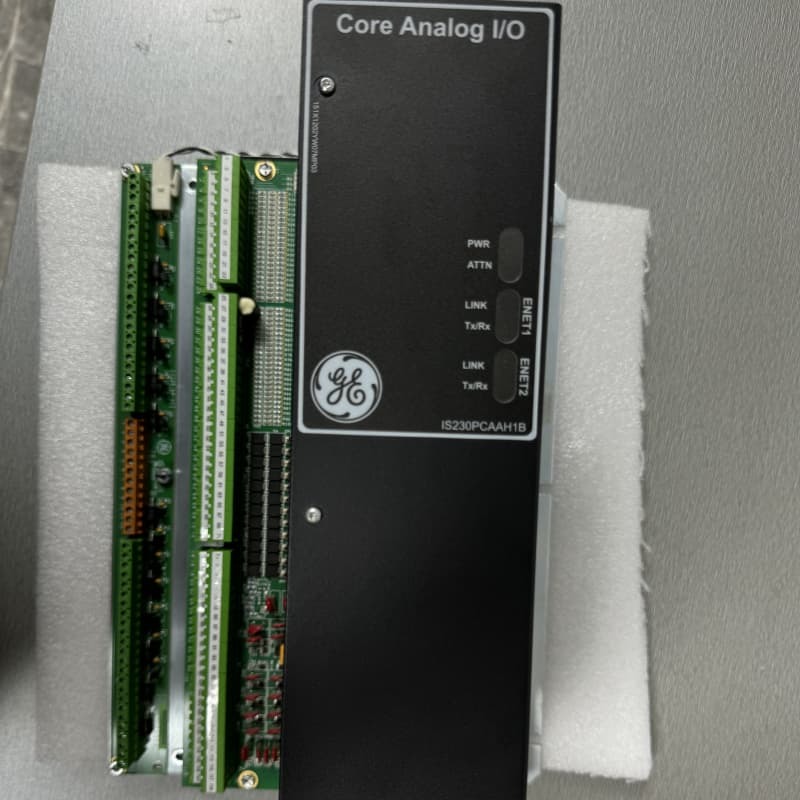

GE IS230PCAAH1B Analog I/O Module for Mark VIe Turbine Control
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS230PCAAH1B |
| Minimum Order Quantity | 1 |
| Price | $2000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS230PCAAH1B Core Analog I/O Module | Product ID | IS230PCAAH1B |
|---|---|---|---|
| Series | Mark VI | Product Net Weight | 2kg |
| Product Net Height | 200mm | Product Net Width | 100mm |
| Product Net Depth/Length | 330mm | Warranty | 1 Year |
| Highlight | GE Mark VIe turbine analog I/O module,GE IS230PCAAH1B control module,turbine control system I/O module |
||
Product Description
GE IS230PCAAH1B Core Analog I/O Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS230PCAAH1B Core Analog I/O Module |
| Product ID | IS230PCAAH1B |
| Series | Mark VI |
| Product Net Weight | 2kg |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Warranty | 1 Year |
Product Overview
The GE IS230PCAAH1B is a Core Analog I/O Module, a critical component of the Mark VIe Distributed Control System designed for precise analog signal processing in gas turbine operations.
This versatile module provides essential analog I/O functions including thermocouple inputs, 4-20 mA current loops, seismic measurements, LVDT excitation, pulse rates, and servo coil outputs. It works in conjunction with TCAS and TCAT terminal boards to support simplex, dual, and TMR systems.
Key Features
- Comprehensive Analog I/O: Supports diverse signal types including thermocouples, 4-20 mA loops, LVDT inputs, seismic data, pulse rates, and servo outputs for comprehensive turbine monitoring and control.
- Redundancy Flexibility: Compatible with simplex, dual, and TMR configurations for mission-critical applications requiring maximum reliability.
- Unified Module Design: Integrates shared processor board and application I/O boards as a single replaceable unit for simplified maintenance.

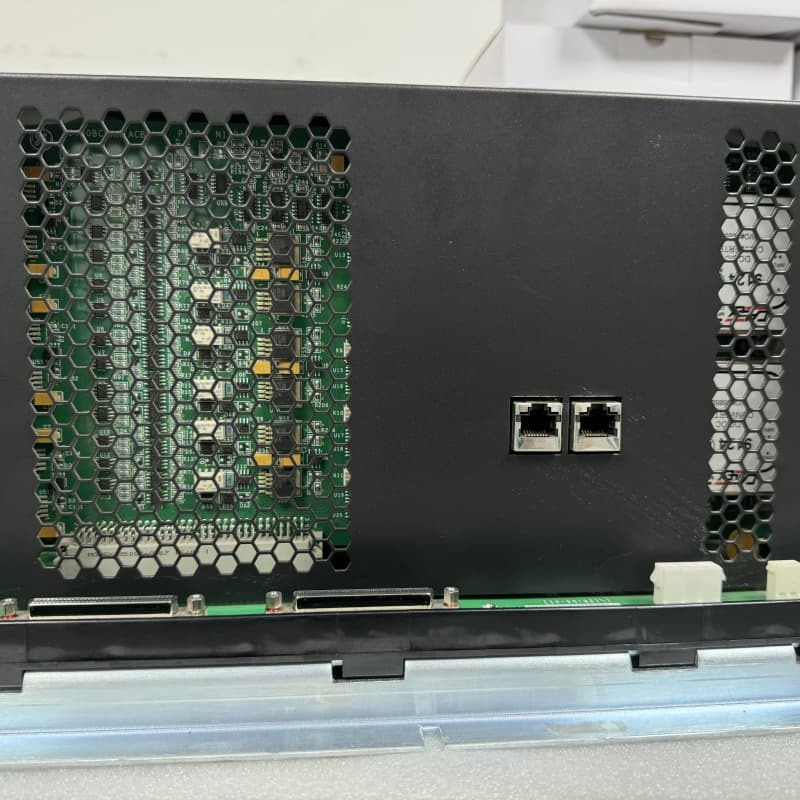

- Seamless Connectivity: Connects to TCAT terminal boards via 68-pin cables with dual Ethernet ports for robust IONet communication with Mark VIe controllers.
- Precision Performance: Operates at 10 ms and 40 ms frame rates with defined accuracy standards for reliable data in all operating conditions.
- Robust Power & Grounding: Includes 28V DC input with current limiting and JGPA board integration for shield grounding to ensure signal integrity.
- Diagnostic Capabilities: Features status LEDs, internal temperature sensors, and electronic ID reading for efficient troubleshooting.
Technical Details

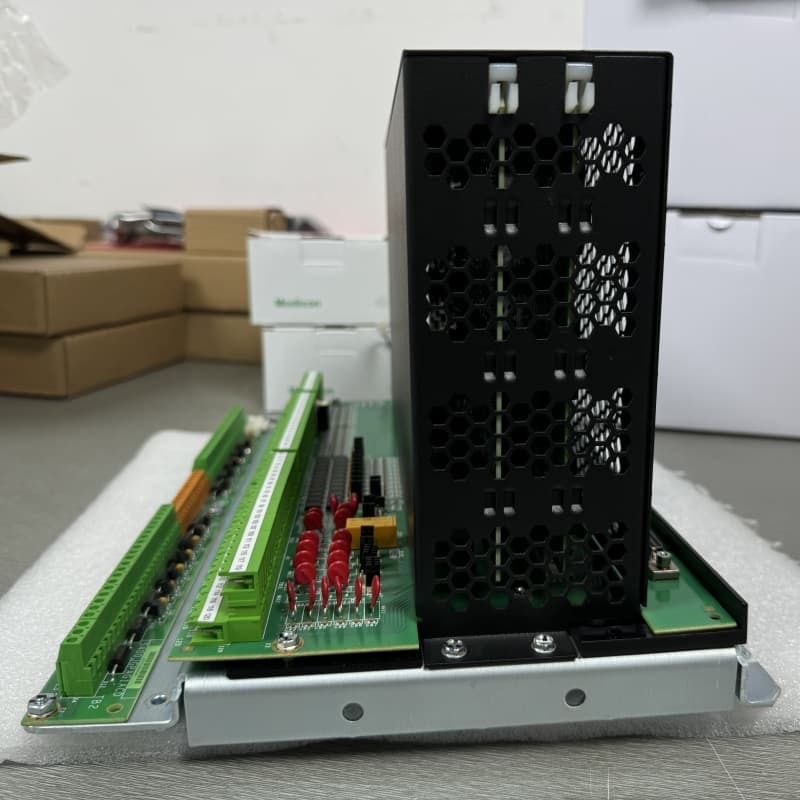

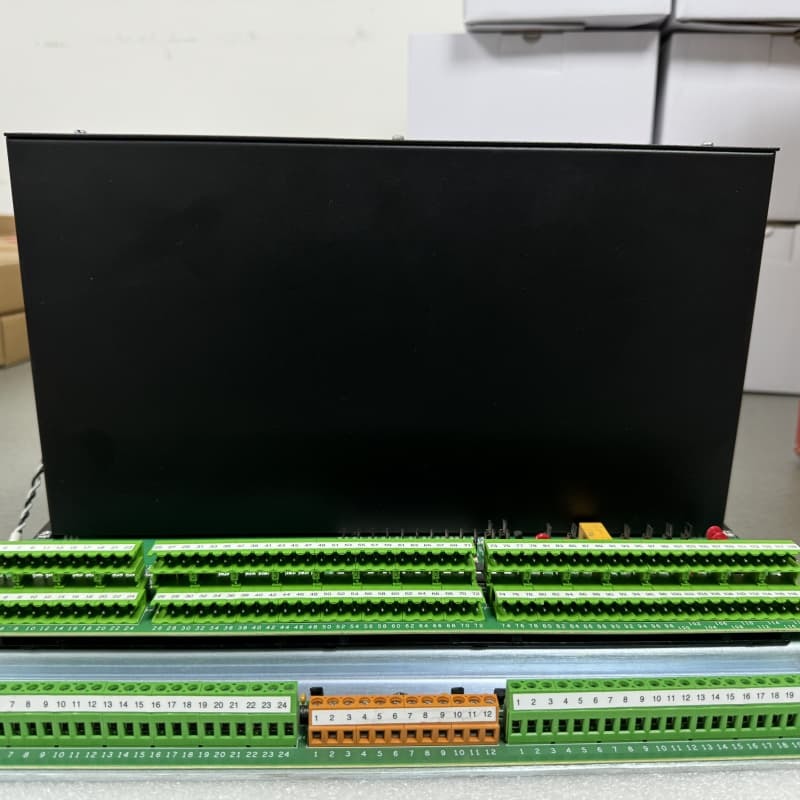

The module comprises a shared processor board, two application I/O boards, and a terminal board engineered as a unified assembly. It connects to TCAT terminal boards via 68-pin cables and draws power through a 28V DC connector, while a JGPA board provides shield ground and 24V field power.
