GE IS200TREGH1BEC Emergency Trip Terminal Board for Mark VIe Turbine
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200TREGH1BEC |
| Minimum Order Quantity | 1pc |
| Price | $2000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200TREGH1BEC Emergency Trip Terminal Board | Product ID | IS200TREGH1BEC |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Mark VIe turbine emergency trip board,GE turbine control terminal board,Mark VIe turbine trip terminal |
||
Product Description
GE IS200TREGH1BEC Emergency Trip Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TREGH1BEC Emergency Trip Terminal Board |
| Product ID | IS200TREGH1BEC |
| Series | Mark VI |
| Function | Discrete Output pack |
| Dimensions (L×W×H) | 330mm × 100mm × 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200TREGH1BEC is an Emergency Trip Terminal Board, a critical safety component in GE's Mark VIe gas turbine control system. This board manages emergency trip solenoids to ensure rapid safety responses during critical scenarios like overspeed or emergencies.
Key Features
- Emergency Trip Control: Manages three trip solenoids for rapid shutdown of fuel/steam valves through coordinated power distribution with the TRPG board.
- Redundant Relay Logic: Nine relays in three voting groups ensure reliable solenoid control, with the I/O controller managing overspeed protection and emergency stops.
- Power Management: Supplies 125V DC to solenoids with current suppression via MOV and uses 28V DC from the controller for relay coils.
- Diagnostic Monitoring: Tracks 125V DC feeder integrity, fuse conditions, and connections to proactively identify issues.
- Economizing Relays: KE1-3 relays reduce post-energization current load while maintaining solenoid readiness.
- Mark VIe Integration: Seamlessly integrates into the series' safety architecture with redundant, controlled emergency responses.

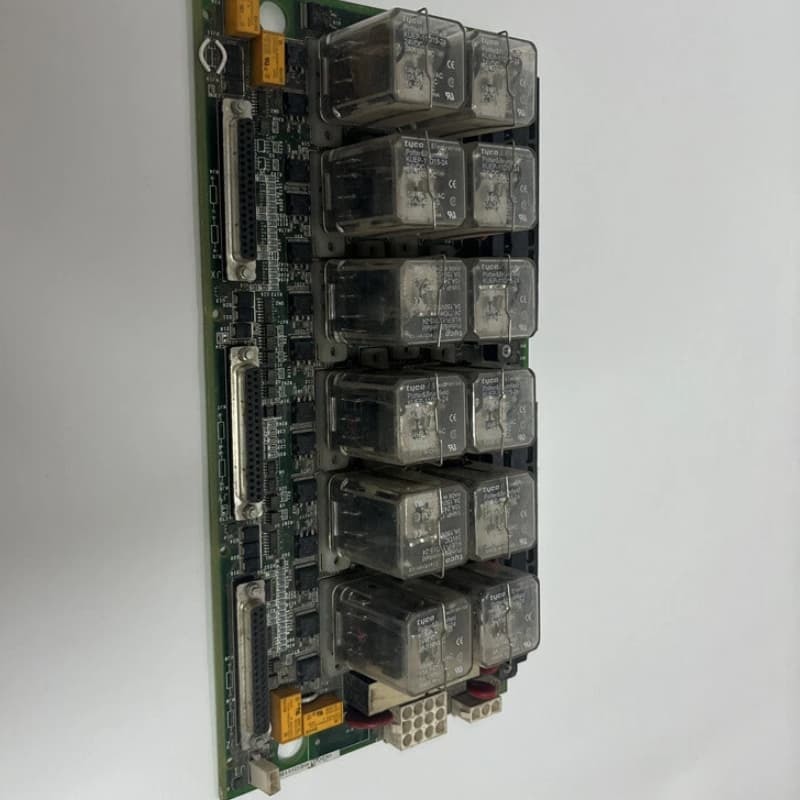

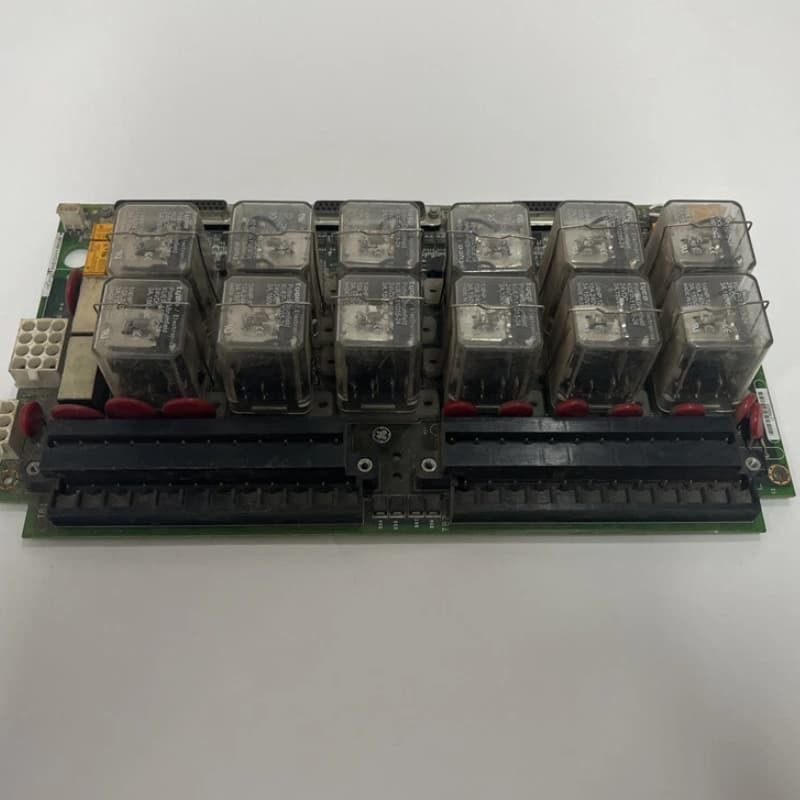

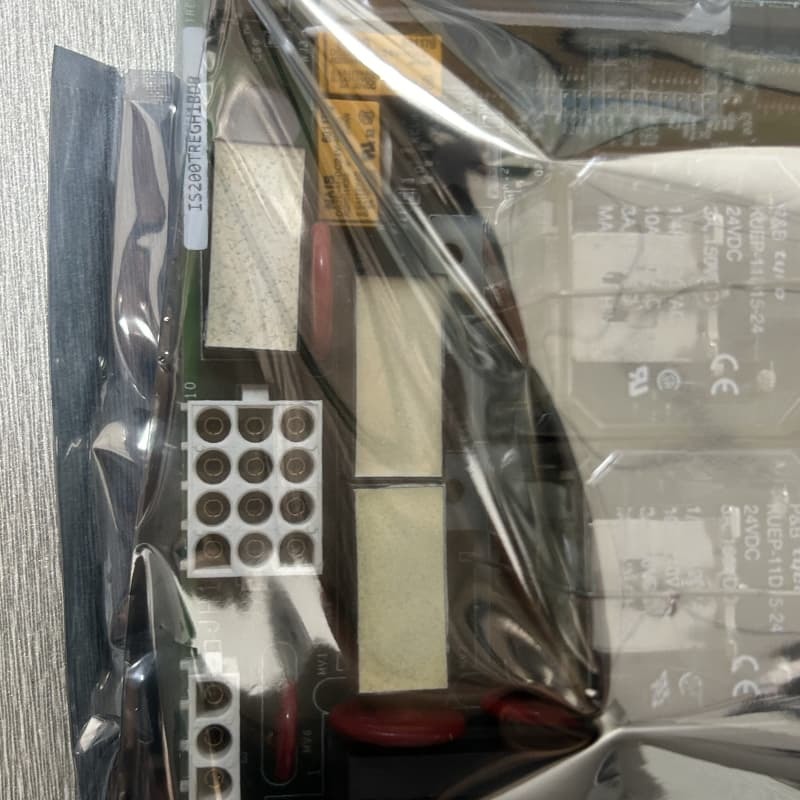

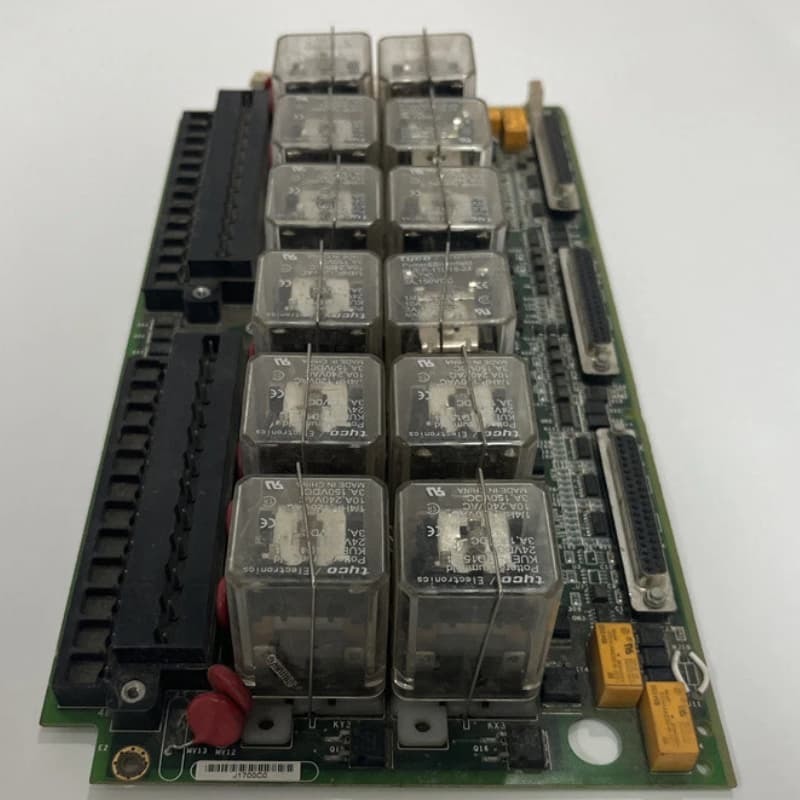

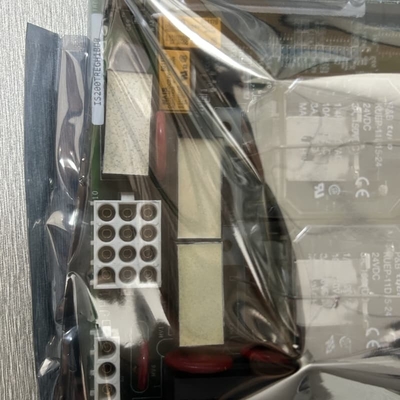

Product Images
