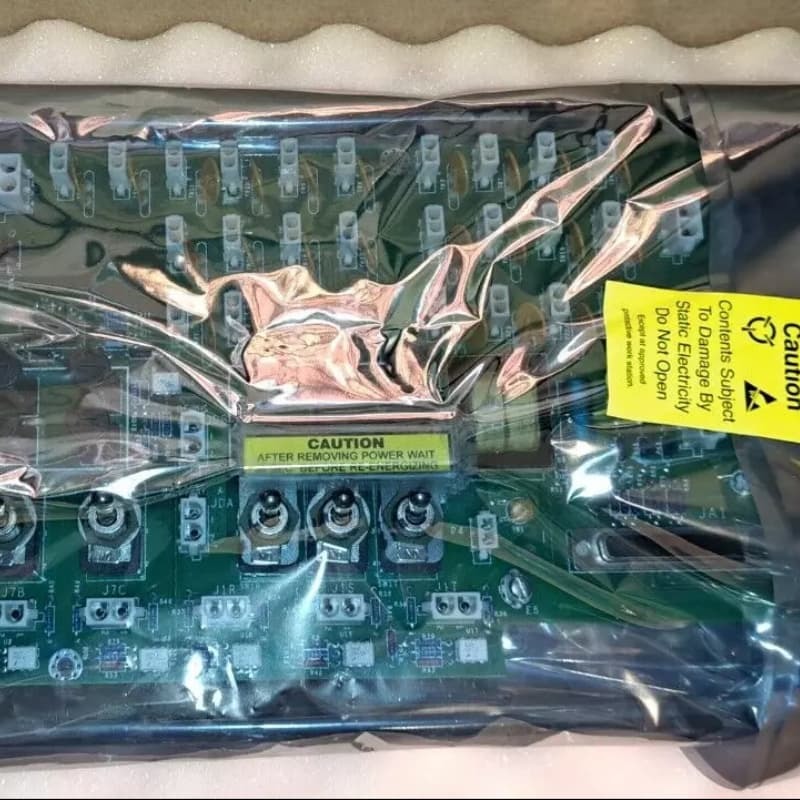

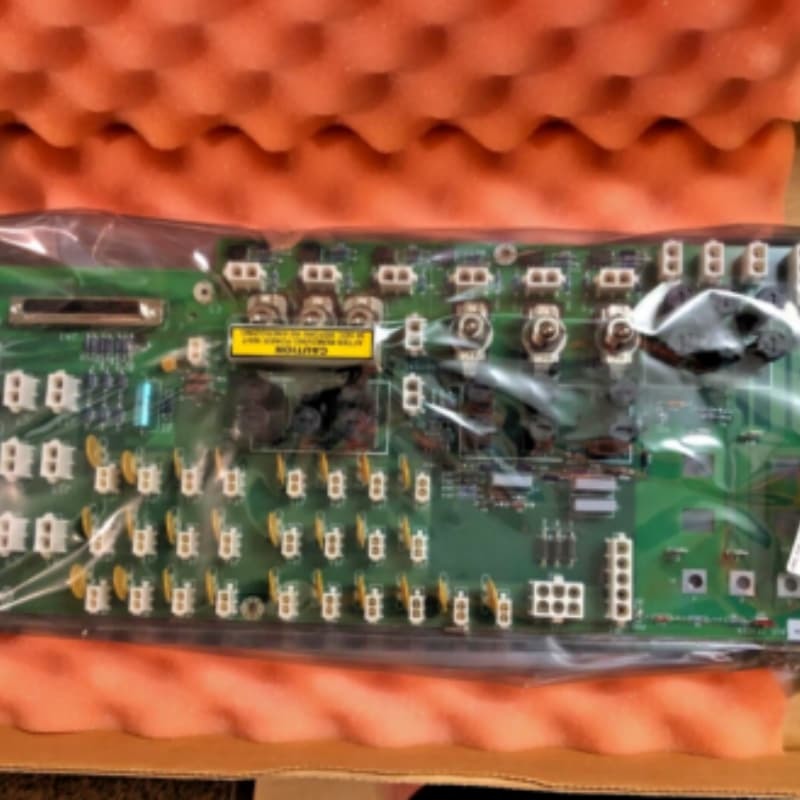

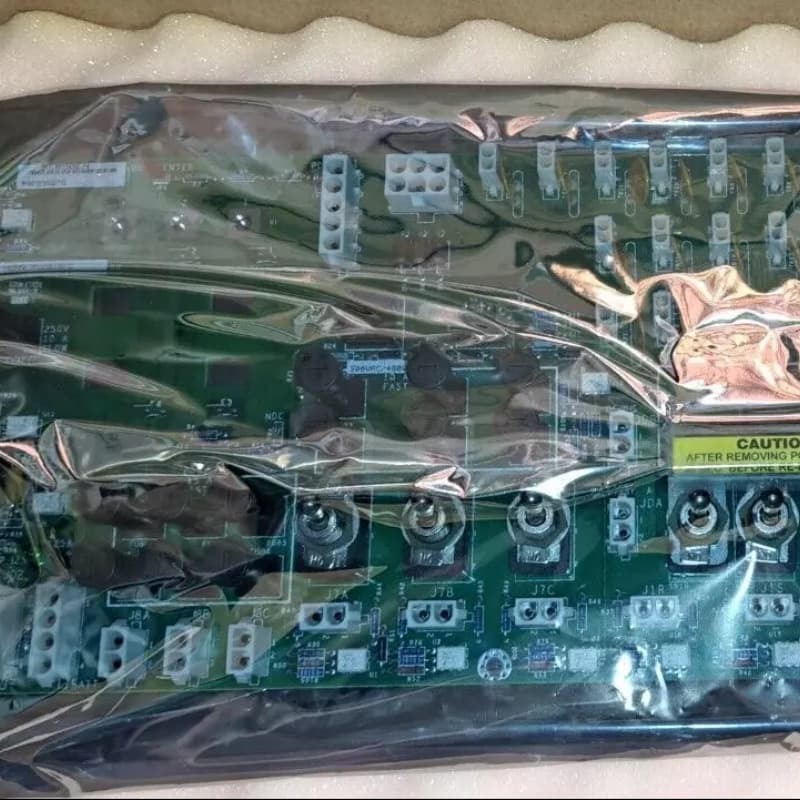

GE IS200JPDCG1ACB Power Distribution Module Mark VI
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200JPDCG1ACB |
| Minimum Order Quantity | 1pc |
| Price | $2000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200JPDCG1ACB Power Distribution Module | Product ID | IS200JPDCG1ACB |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Mark VI power distribution module,turbine control power module,GE IS200JPDCG1ACB module with warranty |
||
Product Description
GE IS200JPDCG1ACB Power Distribution Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200JPDCG1ACB Power Distribution Module |
| Product ID | IS200JPDCG1ACB |
| Series | Mark VI |
| Function | Discrete Output pack |
| Dimensions (LxWxH) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200JPDCG1ACB is a Power Distribution Module in GE's Mark VIe series, designed to centralize power distribution for turbine control systems. It integrates input/output functions to deliver multiple voltage levels—125V DC, 115/230V AC, and 28V DC—to connected boards, streamlining power management in industrial setups.
Mounted vertically with the 115/230V AC input (JAC) at the bottom, it uses four screws for secure attachment, typically positioned low in control cabinets to enhance grounding. A 6.75 x 19.0-inch board on a steel base houses diodes and resistors, with voltages logically arranged for safety and accessibility.
Key Features
- Multi-Voltage Distribution: Delivers 28V DC, 125V DC, and 115/230V AC to system boards, eliminating the need for multiple discrete power modules.
- Logical Voltage Layout: Voltages increase from top to bottom, enhancing safety and ease of maintenance.
- Diagnostic Capabilities: Integrates feedback signals for monitoring voltage differentials, AC input, and battery/multiplexed inputs.
- Flexible Integration: Supports optional PPDA I/O packs via JA1, secured with angle brackets.
- Industrial Design: Steel base and rugged construction ensure durability in demanding environments.
- Mark VIe Compatibility: Seamlessly integrates into the series' architecture for reliable power delivery.
