GE IS200EXAMG1BAA Exciter Attenuation Module for Mark VI Turbine Control
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS200EXAMG1BAA |
| Minimum Order Quantity | 1 |
| Price | $5000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200EXAMG1BAA Exciter Attenuation Module | Product ID | IS200EXAMG1BAA |
|---|---|---|---|
| Product Net Weight | 2kg | Series | Mark VI |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Depth/Length | 330mm | Warranty | 1 Year |
| Highlight | GE Mark VI turbine control module,Exciter attenuation module for turbines,GE IS200EXAMG1BAA turbine component |
||
Product Description
GE IS200EXAMG1BAA Exciter Attenuation Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200EXAMG1BAA Exciter Attenuation Module |
| Product ID | IS200EXAMG1BAA |
| Product Net Weight | 2kg |
| Series | Mark VI |
| Product Net Width | 100mm |
| Product Net Height | 200mm |
| Product Net Depth/Length | 330mm |
| Warranty | 1 Year |
Product Overview
The GE IS200EXAMG1BAA is an Exciter Attenuator Module designed to protect generator shafts in industrial control systems, working in tandem with the EGDM board as a field ground detector. Its primary role is to identify ground paths in exciter components by driving the electrical center of the field winding with a low-frequency AC voltage relative to ground, ensuring early detection of potential faults.

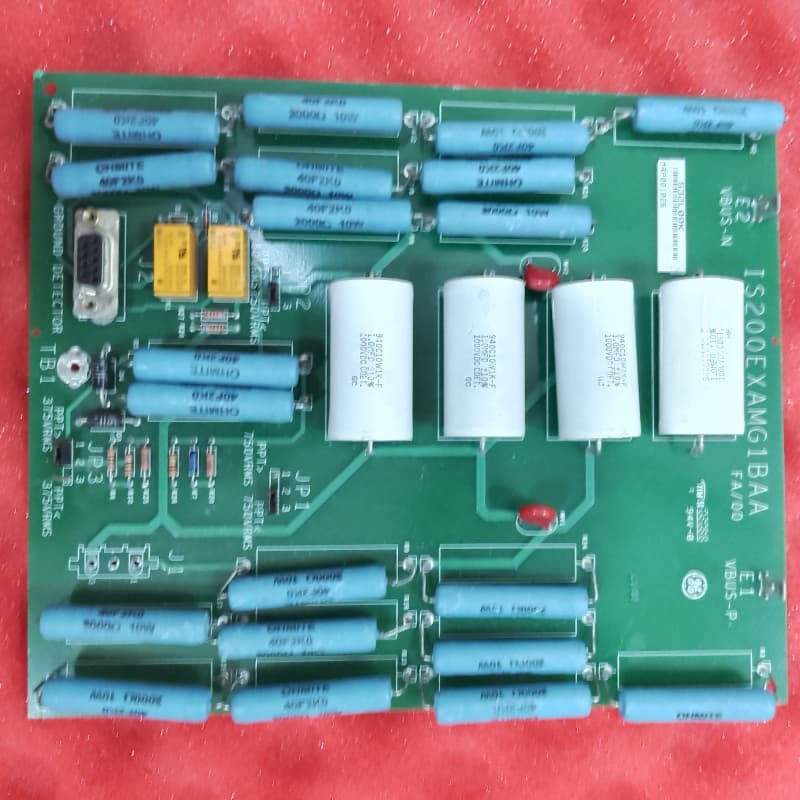

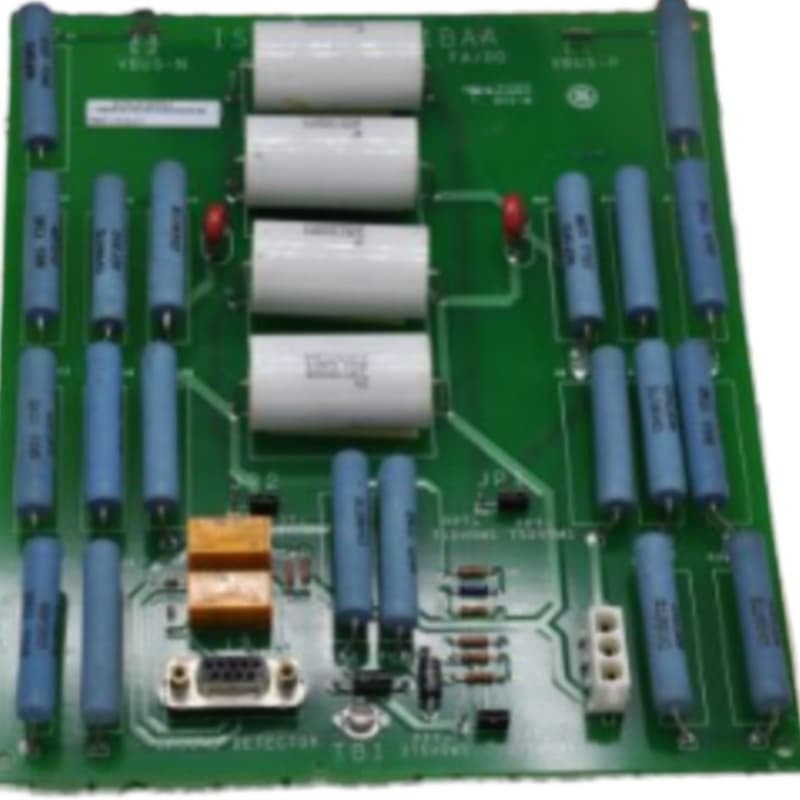

Featuring two female connectors--J1 and J2--the module integrates essential components: a surface wiring screw terminal (TB1), three jumper switches, stab-on connectors, metal oxide varistors, a relay, four large polyester vinyl capacitors, and twenty wire-wound resistors. As part of GE's Mark VI Series, its part number encodes key details, including domestic manufacture, "EXAM" functional classification, normal PCB coating, Group 1 series grouping, and a three-fold revision.
Key Features
- Ground Detection: Collaborates with the EGDM board to detect ground paths in exciter components, safeguarding generator shafts from electrical faults.
- Field Winding Regulation: Drives a low-frequency AC voltage to the field winding's electrical center relative to ground, enabling precise fault monitoring.
- Robust Connectivity: Includes J1/J2 connectors, TB1 surface wiring terminal, and E1/E2 stab-on connectors for secure integration into control systems.
- Component Synergy: Metal oxide varistors, capacitors, and wire-wound resistors ensure stable voltage regulation and signal attenuation.
- Mark VI Integration: Part number "IS200EXAMG1BAA" indicates Mark VI compatibility, domestic manufacture, and Group 1 classification, with normal PCB coating for durability.
- Configurable Design: Three jumper switches allow customization for specific system requirements, enhancing adaptability in industrial setups.
- Safety Focus: Critical for preventing electrical damage to generators, supporting reliable operation in power generation and heavy machinery applications.

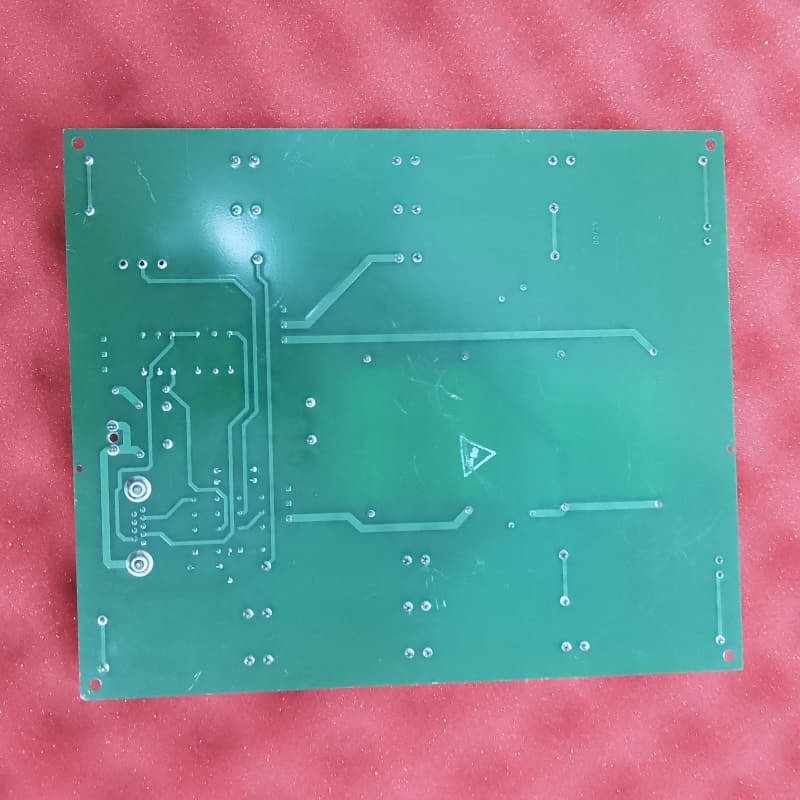

Product Images
