GE IS200EHPAG1DAB Gate Pulse Amplifier
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200EHPAG1DAB |
| Minimum Order Quantity | 1pc |
| Price | $1500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200EHPAG1DAB Gate Pulse Amplifier | Product ID | IS200EHPAG1DAB |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE turbine gate pulse amplifier,IS200EHPAG1DAB pulse amplifier,GE control system amplifier |
||
Product Description
GE IS200EHPAG1DAB Gate Pulse Amplifier
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200EHPAG1DAB Gate Pulse Amplifier |
| Product ID | IS200EHPAG1DAB |
| Series | Mark VI |
| Function | Discrete Output pack |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200EHPAG1DAB is an Exciter Gate Pulse Amplifier Board, a critical component in GE's EX2100 Series Excitation Control Systems, designed for 100 mm EX2100™ excitation setups.
Key Features
- SCR Control: Processes six differential gate commands from ESEL, using dedicated amplifiers for each SCR with optical and galvanic isolation to ensure independent, reliable operation.
- Monitoring Capabilities: Interfaces with Hall Effect sensors to monitor three-phase bridge currents; tracks bridge temperature via RTD/thermistor or temperature switches.
- Cooling Oversight: Detects fan airflow loss, supporting pulsed or dry-contact inputs configurable via jumper.
- Status Feedback: LEDs indicate power health, gate commands, SCR outputs, faults, and sensor alarms for quick diagnostics.
- Industrial Integration: Seamlessly fits EX2100 architectures, with shielded cables and robust connectors ensuring signal integrity in excitation control environments.

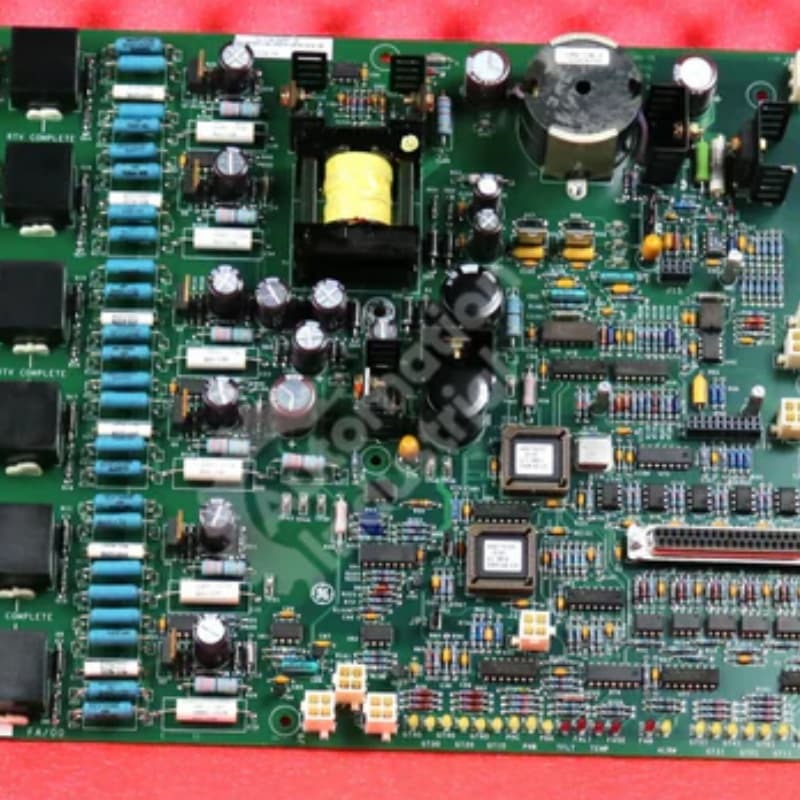

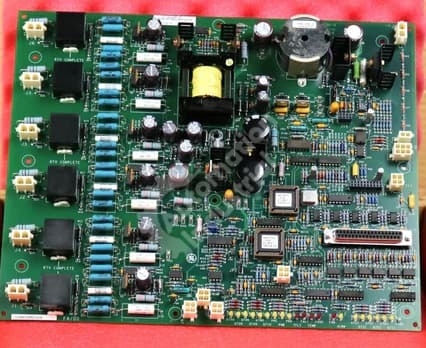

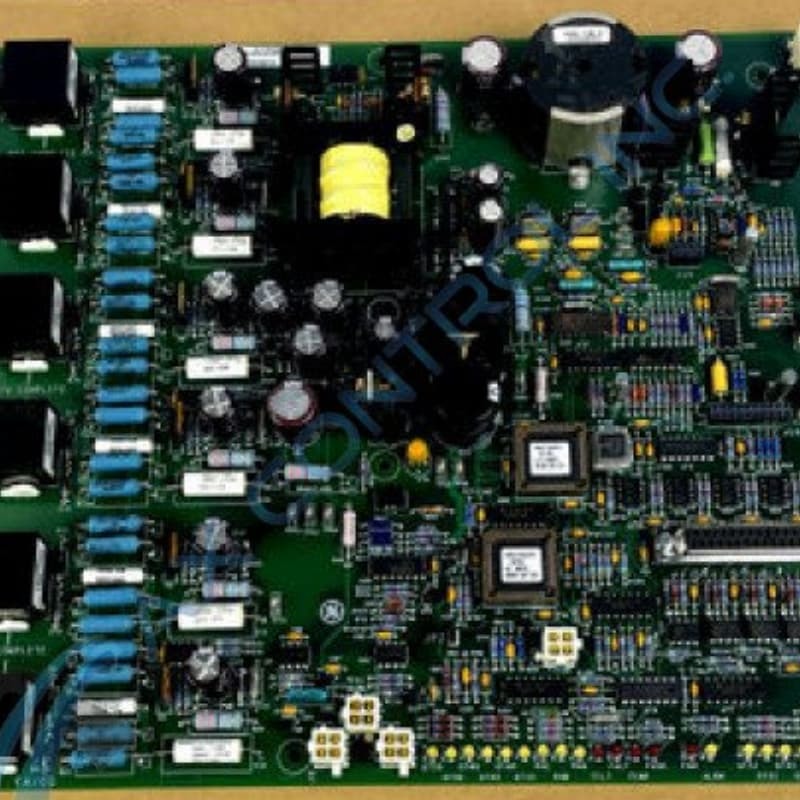

Product Images
