GE IS200DAMCG1A Gate Drive Amplifier for Mark VI Turbine Control
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200DAMCG1A |
| Minimum Order Quantity | 1pc |
| Price | $2000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200DAMCG1A Gate Drive Amplifier | Product ID | IS200DAMCG1A |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Mark VI turbine gate drive amplifier,GE turbine control amplifier,Mark VI gate drive amplifier with warranty |
||
Product Description
GE IS200DAMCG1A Gate Drive Amplifier
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200DAMCG1A Gate Drive Amplifier |
| Product ID | IS200DAMCG1A |
| Series | Mark VI |
| Function | Discrete Output pack |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200DAMCG1A is a Gate Drive Amplifier board, a critical component in GE's low-voltage Innovation Series drive systems. It serves as the interface between control racks and power-switching IGBTs, amplifying gate drive signals to ensure precise on/off control of IGBTs for accurate power regulation in drive systems.
Designed for high-power industrial applications, this amplifier supports up to 690V and 1700A, making it ideal for motor control and inverter operations. The board features direct connections to IGBT gates, collectors, and emitters, and connects to the control rack's BPIA board via cables.
Key Features
- Signal Amplification: Precisely controls IGBT switching for accurate power regulation
- Visual Diagnostics: Four status LEDs (UON, UFF, LON, LFF) for IGBT operation and fault indication
- Isolation & Protection: Six optocouplers provide signal isolation from electrical noise
- High-Power Rating: Supports up to 690V and 1700A for heavy-duty applications
- Seamless Integration: Direct connection to IGBTs and BPIA control board
- Fault Detection: Built-in monitoring enhances system reliability
- Durable Design: Compact PCB with secure mounting via captive fasteners and Keps nuts

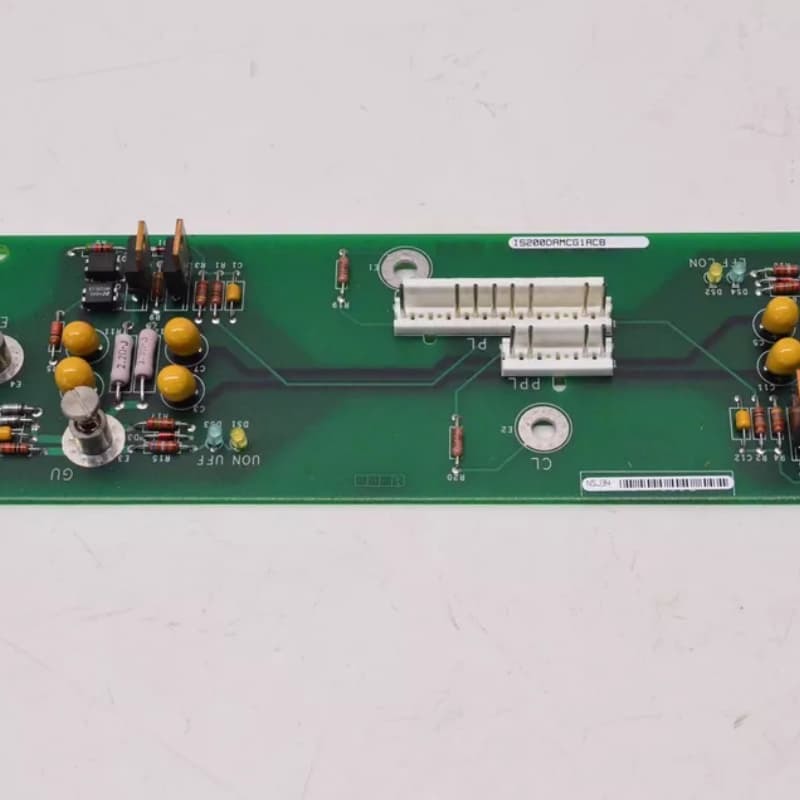

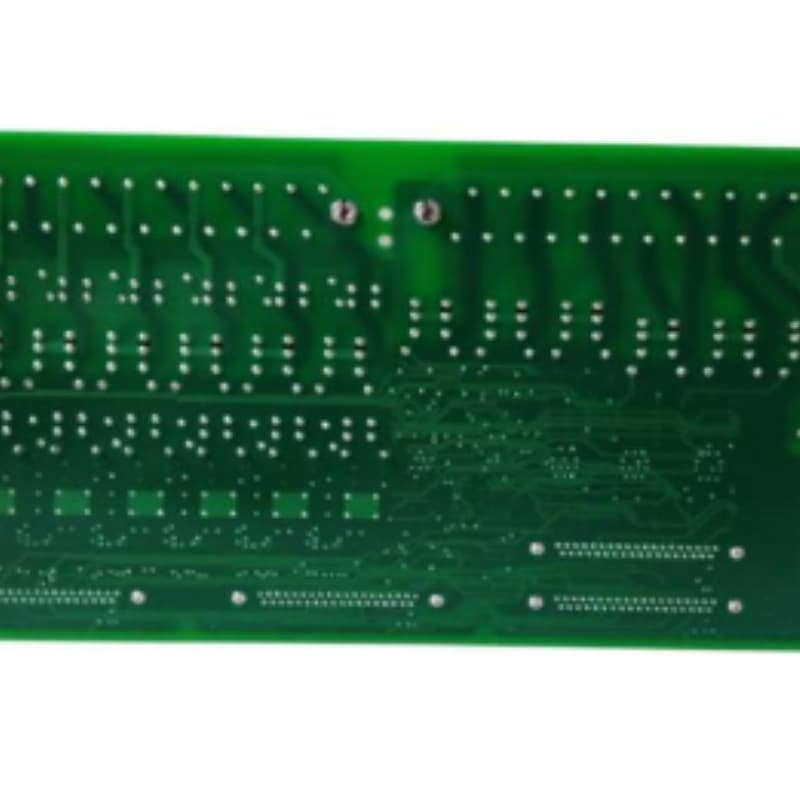

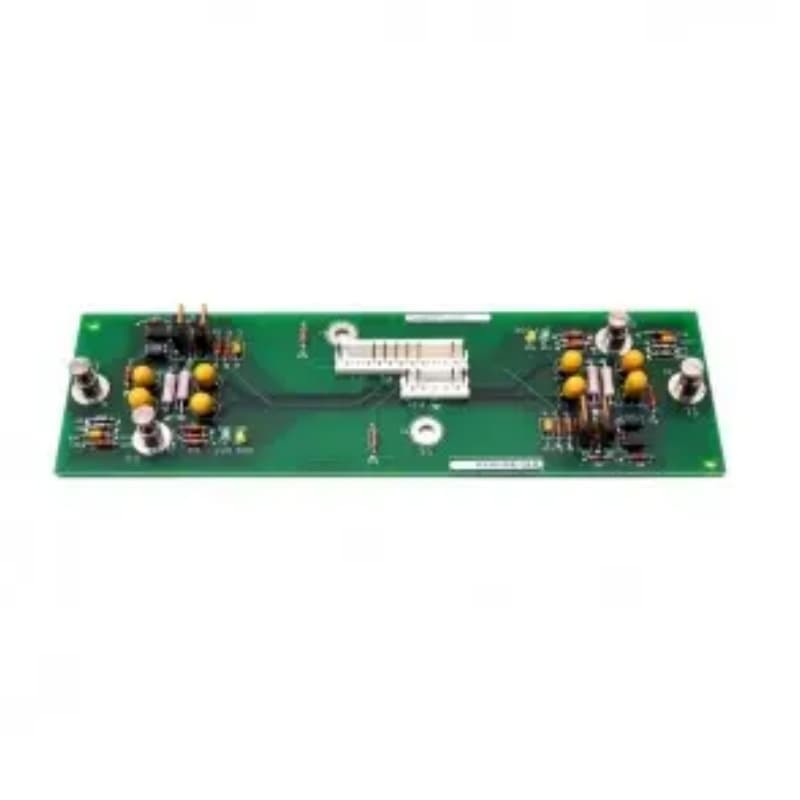

Product Images
