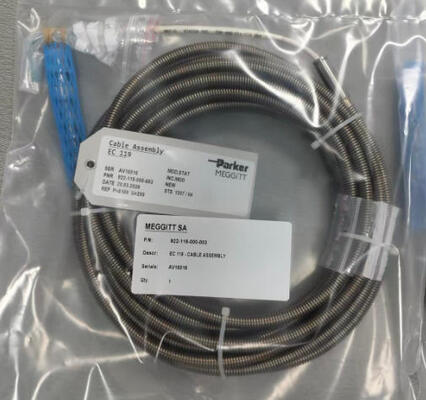

EC119 922-119-000-003-P5000-U5000 Shielded Cable Assembly for Industrial Monitoring Systems

EC119 922-119-000-003-P5000-U5000 Shielded Cable Assembly for Industrial Monitoring Systems

The EC119 922-119-000-003-P5000-U5000 is a shielded cable assembly engineered for compatible industrial monitoring applications, including vibration measurement, dynamic pressure monitoring, and gas turbine ice-detection systems.

Rather than using a basic cable with the same connection at both ends, this assembly combines a CG505 threaded connector with flying leads. The connector mates with the specified equipment, while the exposed leads allow the other end to be wired into the required terminals. This design gives the installer a clear connection point at the equipment end and flexibility at the wiring end. Inside the assembly, the K205A two-wire cable is designed for low-noise signal transmission and uses shielding to help limit the effect of nearby electrical interference.

The cable is also fitted with a sealed flexible protective tube. Instead of leaving the cable exposed along the entire route, this tube provides an additional barrier against moisture and physical contact over the protected section. It is a useful design feature where the cable path passes through areas that are difficult to keep completely dry or free from mechanical contact.

The suffix P5000-U5000 identifies the ordered configuration and should be checked against the matching product drawing. Confirm the specified cable and protection-tube lengths before purchasing, particularly when replacing an assembly that must fit an existing installation.

Cables installed near turbines, compressors, pumps, and other machinery may be exposed to moisture, vibration, and accidental contact. The EC119's sealed flexible protective tube helps protect the cable along the covered section, making it suitable for applications where a basic cable may offer insufficient physical protection. This design can also help reduce maintenance caused by damaged cable sections or water entering through a poorly protected route.

Verify the cable specification and full part number. The listed EC119 922-119-000-003-P5000-U5000 is a custom cable assembly with fixed P-value and U-value parameters. Other EC119 variants carry different P/U suffix codes, cable lengths, and temperature ratings. If this replacement cable needs to fit the existing cable tray, routing, and probe hardware, confirm the complete part number against the machine drawing and original BOM before installation.

• Rotating machinery online protection systems
• Vibration and shaft-position monitoring
• Steam turbine and compressor safety supervision
• Large fan, generator, and high-speed pump condition monitoring
• Oil and gas facilities
• Chemical processing plants
• Power generation facilities
• Metal processing and coal-chemical plants

• Export to 40+ countries
• Complete after-sales service
• Stable supply chain ensuring continuous availability
• COO, COC, and CQ certification support
• Rapid quotation response
