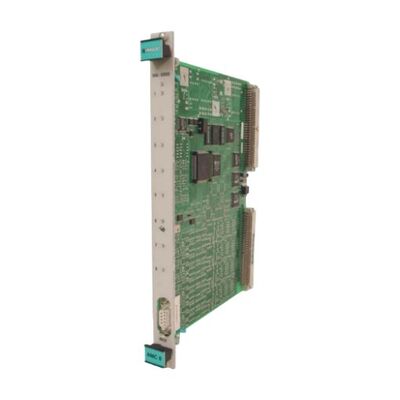

AMC8 200-550-003-112 Analog Monitoring Card for VM600 Machinery Protection Systems

The AMC8 200-550-003-112 is an eight-channel analog monitoring card designed for the VM600 machinery monitoring and protection system. It is used to collect and process temperature and process signals from industrial equipment, helping operators keep track of key operating conditions and respond when measured values move outside set limits.

Unlike a vibration probe that measures movement at a machine, the AMC8 works inside the monitoring rack. It receives configured input signals through its matching IOC8T input/output card, processes the measurements and supports alarm functions according to the installed system setup. This makes it useful for plants that need to monitor several operating values through one rack-based system.

The eight input channels can be configured for supported signal types, including thermocouples, resistance temperature detectors (RTDs), current and voltage inputs. This allows the card to handle different types of measurement within one system, rather than requiring a separate monitoring card for every signal type. The exact input range and wiring method depend on the selected channel configuration.

For maintenance teams, the full part number is important. The 003 version must be checked against the installed MPSx software and firmware, while the associated IOC8T card, rack type and channel settings should also be confirmed before replacement.

The AMC8 is not a stand-alone field input module. It must be used with a compatible IOC8T interface and the appropriate VM600 rack arrangement. Confirm the part numbers of both cards, the rack type and the installed slot positions before approving a replacement.

Record the input type, wiring method, measurement range, scaling, alarm limits and any channel calculations before replacing the card. After installation, verify these settings in the system software and compare the displayed readings with the expected field values.

The 200-550-003-112 ordering code belongs to the 003 firmware family. Check the installed MPSx software version and the relevant compatibility documentation before replacing a card. Physical fit alone does not confirm that the module will operate correctly within the existing system.

Thermocouples, RTDs, current signals and voltage signals require different channel settings and wiring arrangements. Confirm the connected instrument and the selected channel configuration before energizing the system. For temperature measurements, check any required cold-junction compensation or RTD wiring setup in the applicable technical manual.

• Rotating machinery online protection systems
• Vibration and shaft-position monitoring
• Steam turbine and compressor safety supervision
• Large fan, generator and high-speed pump condition monitoring
• Oil and gas facilities
• Chemical processing plants
• Power generation facilities
• Metal processing and coal-chemical plants

In a typical power-plant maintenance task, an AMC8 monitoring card is replaced after a channel fault is reported. Before removing the card, the engineer saves the existing configuration and records the connected signal types and alarm settings. The replacement is then checked against the IOC8T card, rack and software version.

After installation, the engineer verifies each channel's reading against the corresponding field instrument and confirms that the alarm settings are correct. This process helps return the monitoring system to service without unintentionally changing the way the plant's measurement points are monitored.
